MarioTennisVirtualBoyRecomp

MarioTennisVirtualBoyRecomp

Experimental color mods

Watch the full-color gameplay video on YouTube.

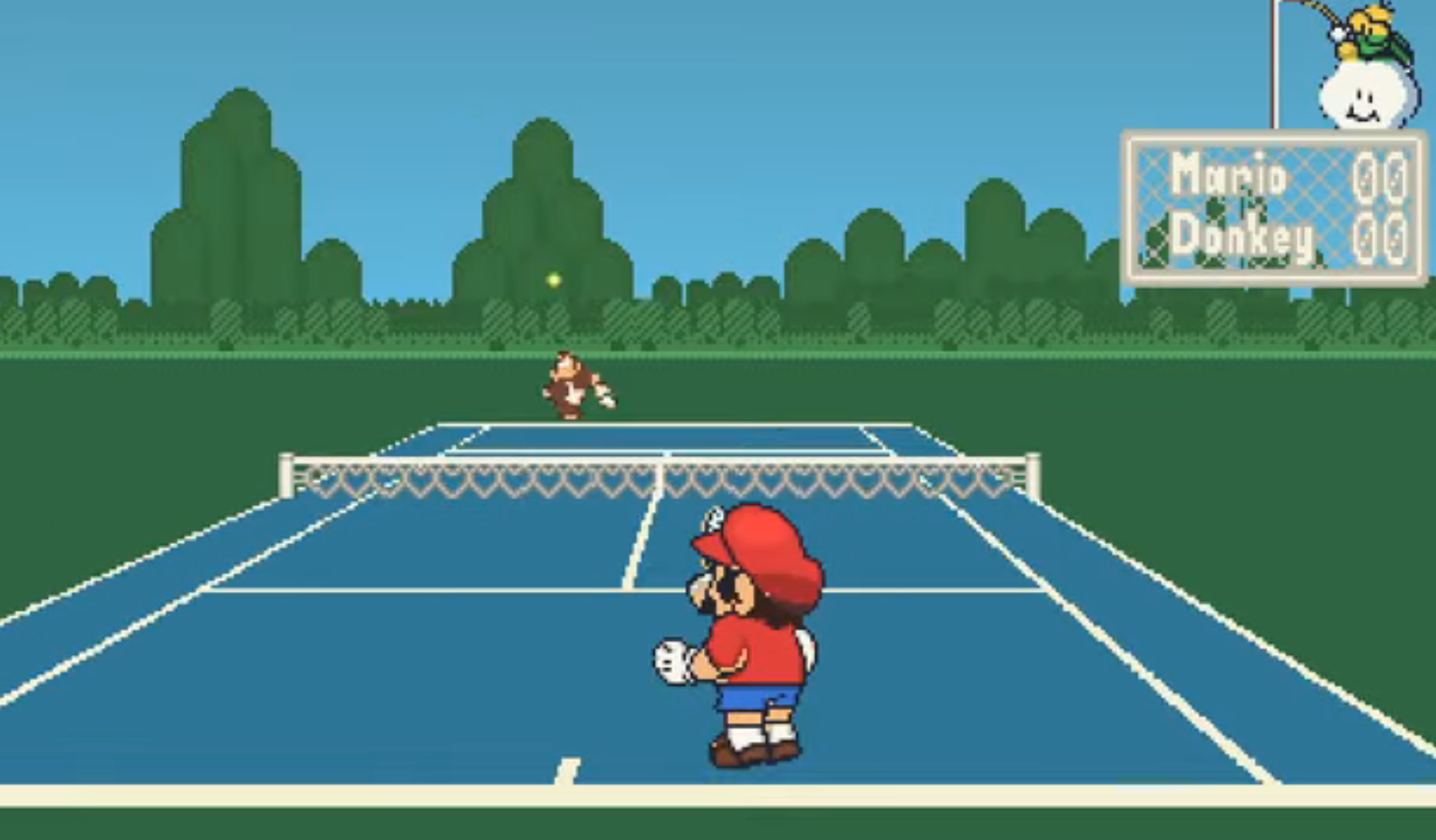

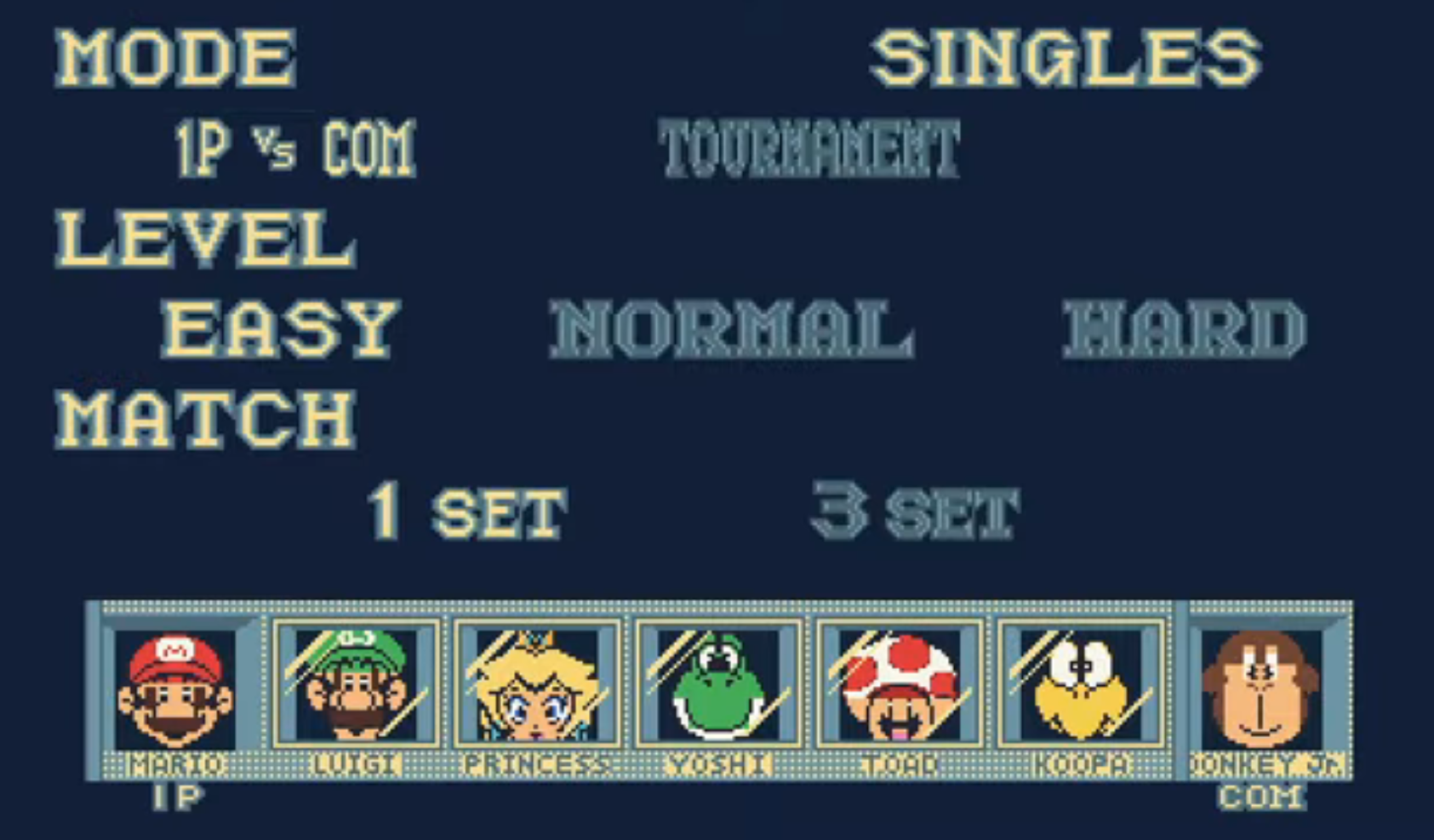

These screenshots show the optional experimental color mod. See Mods and color for setup and limitations.

---

Static V810→C recompilation of Mario's Tennis (Virtual Boy, 1995) running as a native Windows binary. Built with the vbrecomp framework.

Includes a shared launcher, persistent controls/settings, a ROM-preserving mod catalog, and an optional full-color renderer using the original artwork. See Mods and color for installation, palette authoring, validation, and the experiment's limitations.

Status: Playable. A full match against the CPU completes without crashes. Audio, video, and input are all wired. Pixel-perfect on the title/warning screen versus the Beetle VB reference (0 / 86 016 pixels differ at zero tolerance).

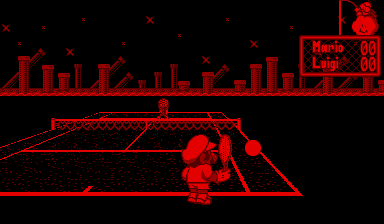

Native red gameplay captured from the recomp with color mods disabled.

---

For players

Quick start

The v0.2.2 Windows release includes the Virtual Boy launcher, box art, and the optional full-color mod. Color is disabled by default; the original ROM is never modified. Linux/macOS build scripts are available for source builds.

1. Download MarioTennisVirtualBoyRecomp-windows-x64.zip from Releases.
2. Extract the entire ZIP, including assets, licenses, and SDL2.dll.
3. Provide your own Mario's Tennis cart dump (the binary will not run against any other file — it CRC32-verifies the ROM at launch). Required:
   • CRC32: 0x7CE7460D
   • SHA-256: 5dc5e6b5d5f538f56b3b9727db1c7931d9dfe1bbd0743f698897e0fd90e70101
   • Size: 524 288 bytes
4. Run it:

   MarioTennisVirtualBoyRecomp.exe --rom path\to\marios_tennis.vb


To enable color, import the included marios-tennis-full-color-0.2.2.vbmod in Mods, then enable Full-color renderer. You can also install and enable it explicitly from the command line:

.\MarioTennisVirtualBoyRecomp.exe --install-mod .\marios-tennis-full-color-0.2.2.vbmod --enable-mod marios-tennis.full-color:full-color

The release executable omits the TCP debugger and private pose recorder.

Controls

Keyboard:

Virtual Boy	Keyboard
Left D-pad	Arrow keys
Right D-pad	W / A / S / D
A / B	X / Z
L / R	Q / E
Start / Select	Enter / Right Shift
Turbo	TAB (skip 50.27 Hz pacing)
Settings menu	Esc (UI builds); close the window to quit

Xbox controller (XInput, player 1):

Virtual Boy	Xbox
Left D-pad	D-pad (rebindable in launcher)
Right D-pad	Right stick
A / B	A / B
L / R	LB / RB
Start / Select	Start / Back

Command-line flags

Flag	Effect
--rom PATH	Cart file (required for play)
--stereo	Show both eyes stacked vertically instead of single-eye
--headless	No SDL window, TCP debug server only
--port N	TCP debug port (default 4390)
--help	Print full usage

The window opens at 768 × 448 (single-eye, 2× scale) by default. Resize freely — content letterboxes to preserve aspect.

---

For developers

ROM details

Field	Value
Title	Mario's Tennis (Virtual Boy)
CRC32	0x7CE7460D
SHA-256	5dc5e6b5d5f538f56b3b9727db1c7931d9dfe1bbd0743f698897e0fd90e70101
Size	524 288 bytes

The recompiler bakes this CRC32 into the generated dispatch file via vb_game_expected_crc32(). The runtime verifies at startup and refuses to launch on mismatch.

Repo layout

MarioTennisVirtualBoyRecomp/
├── CMakeLists.txt             — top-level; forces VBRECOMP_GAME=marios_tennis
├── README.md                  — this file
├── LICENSE.md                 — repo licence
├── vbrecomp.pin               — pinned vbrecomp framework SHA
├── marios_tennis.toml         — per-cart codegen config (currently empty)
├── baseline-title-screen.png  — known-good render (1× regression baseline)
├── baseline-title-screen-3x.png — 1152 × 672 preview
├── generated/                 — recompiler output (committed; no ROM bytes)
├── roms/                      — your cart dump goes here (gitignored)
├── beetle-vb/                 — optional Beetle VB oracle clone (gitignored)
├── build/                     — CMake build dir (gitignored)
├── build-release/             — Release build dir (gitignored)
└── vbrecomp/                  — framework (separate repo: mstan/vbrecomp)

Build from source

Prerequisites: Windows 10+, MSYS2 MinGW64 GCC, Ninja, CMake and SDL2, plus Python 3.10+ (tomli is needed only on Python 3.10). Initialize both pinned submodules with git submodule update --init --recursive.

$env:PATH = "C:\msys64\mingw64\bin;$env:PATH"
& 'C:/msys64/mingw64/bin/cmake.exe' -S . -B build -G Ninja `
    -DCMAKE_BUILD_TYPE=Release `
    -DCMAKE_MAKE_PROGRAM=C:/msys64/mingw64/bin/ninja.exe `
    -DCMAKE_C_COMPILER=C:/msys64/mingw64/bin/gcc.exe `
    -DCMAKE_CXX_COMPILER=C:/msys64/mingw64/bin/g++.exe
& 'C:/msys64/mingw64/bin/cmake.exe' --build build --target vb-runtime mario-tennis-mods
.\build\vbrecomp\runtime\MarioTennisVirtualBoyRecomp.exe --rom roms\marios_tennis.vb

For separate development worktrees, pass -DVBRECOMP_ROOT=/path/to/vbrecomp and -DRECOMP_UI_ROOT=/path/to/recomp-ui at configure time. No directory junctions or submodule deletion are needed. -DMARIO_TENNIS_UI=OFF omits the launcher/menu; package flags and the game renderer still work. -DVBRECOMP_DEBUG_TOOLS=OFF removes TCP tooling for production. --paused requires debug tools.

Generated C is committed. To reproduce it, run from the framework checkout:

python -m recompiler.cli.vbrecomp_codegen --rom /path/to/marios_tennis.vb --module marios_tennis --out /path/to/game/generated --seeds-toml /path/to/game/marios_tennis.toml

The submodule gitlinks are authoritative dependency pins; vbrecomp.pin mirrors the framework SHA. The color package contains no game artwork or ROM bytes.

Beetle VB oracle (development only)

To cross-check pixel output against Beetle VB libretro:

# Build the static archive (one-time, see vbrecomp/docs/BRINGUP.md)
git clone https://github.com/libretro/beetle-vb-libretro.git beetle-vb
# ... follow BRINGUP.md to build mednafen_vb_libretro.dll

# Build the oracle target alongside vb-runtime
cmake --build build --target vb-beetle

# Run both processes, then diff
.\build\vbrecomp\runtime\vb-runtime.exe --rom roms\marios_tennis.vb --port 4390 --headless
.\build\vbrecomp\runtime\vb-beetle.exe  --rom roms\marios_tennis.vb --port 4391 --headless
python vbrecomp\tools\_framebuf_diff.py --tolerance 0

The shipped binary contains none of beetle-vb's code — the oracle is only built when the static archive is present, and the release zip never includes it.

Cutting a release

cmake --build build-release --target vb-runtime
mkdir release-stage
Copy-Item build-release\vbrecomp\runtime\vb-runtime.exe release-stage\MarioTennisVirtualBoyRecomp.exe
Copy-Item C:\msys64\mingw64\bin\SDL2.dll release-stage\
# author README.txt
Compress-Archive release-stage\* MarioTennisVirtualBoyRecomp-windows-x64.zip -Force

git tag -a vX.Y.Z -m "..."
git push origin vX.Y.Z
gh release create vX.Y.Z MarioTennisVirtualBoyRecomp-windows-x64.zip --title "..." --notes "..."

Architecture

This is a static recompiler, not an emulator. The V810 machine code in the cart ROM is decoded once at codegen time and translated to C functions, one per cart function. Those C functions are compiled by gcc into native x86-64. At runtime there is no V810 fetch/decode/execute loop — each cart function is a native call.

• Decoder + recompiler: vbrecomp/recompiler/ (Python).
• Runtime: vbrecomp/runtime/ — V810 register state, MMIO bus, VIP (renderer), VSU (audio synthesis), interrupt controller, timer, input register, TCP debug server, SDL window + audio + XInput frontend.
• Per-cart generated code: generated/marios_tennis_{full,dispatch}.c — committed for build reproducibility (code only; no ROM bytes).

Licence

The recompiler, runtime, and tooling are MIT (see vbrecomp/LICENSE and LICENSE.md).

Mario's Tennis is © 1995 Nintendo. This project does not include or distribute any copyrighted ROM content. Provide your own cart dump.

---
