A native Direct3D 12 renderer for a static recompilation of Project Gotham Racing 4 (Title Update #2), built on the ReXGlue SDK with fixes from Xenia Canary. It builds on the core work of safzanpirani/pgr4-native, which grew out of MTR-PGR4 and, before it, PGR4-Recomp

Building and running

Most people should grab the latest release from https://github.com/shaunsingh/pgr4-native/releases, the instructions below are for active development of the latest changes etc

The build runs on Linux and cross-compiles the Windows executables with clang-cl. They run under Proton, or on Windows. You need your own PGR4 disc, extracted, and Title Update #2, either as its package or as its two files. The disc is region-free and the PAL one matches the NTSC one file for file, so either works, and --user_language picks the language. This repository contains no game data, and the C++ that the build generates from the game's executables must not be published.

scripts/fetch-xwin.sh          # MSVC CRT and Windows SDK (accepts Microsoft's license)
scripts/build.sh --game <disc folder> --update <title update package or folder>
scripts/play.sh --install      # install the build and write the Steam desktop entries
scripts/play.sh                # play (with fgmod installed, FSR is FSR 4 Lite through OptiScaler)
scripts/play.sh --debug        # play with logs, the frame CSV, marks (F12) and a CPU profile
scripts/deck-run.sh deck <tag> --refresh 90 --hold 45 --output eDP-1   # scripted race with timings

After play.sh --install, Steam's "Add a Non-Steam Game" lists "PGR4 (native renderer)" and "PGR4 (native renderer, debug)". Add them without a compatibility tool, since the script starts Proton itself. DLC copied off a console as STFS packages goes in the game folder's Content\, next to the title update's package.

Flags

Settings go on the command line (--name=value) or in pgr4_recompiled.toml next to the executable. games/pgr4/pgr4_recompiled.toml holds the release settings. The game's Options menu has the port's own Display, Driving and Developer pages, which save to userdata/pgr4_settings.toml over pgr4_recompiled.toml.

Flag	Default	Effect
--pgr4_native	false	Run the native renderer beside the Xenos plugin, in a debug window
--pgr4_native_primary	false	Make the native renderer the game's output (implies --pgr4_native, sets --gpu_skip_draws)
--pgr4_native_renderer_switch	true	In primary mode, F9 (bind_renderer_switch) switches between the native renderer and the Xenos plugin
--pgr4_native_classic	false	In primary mode, start on the Xenos plugin, as after F9 (the Display settings' Renderer). The game then renders its own 16:9 frame, the only one the plugin draws, and F9 switches both ways; at 16:10 F9 stays with the native renderer
--pgr4_native_debug_keys	true	Let F7, F8 and F9 do what they do (the Developer settings' Debug keys)
--pgr4_native_replace_draws	true	In primary mode, the guest D3D's DrawIndexedVertices builds no command packets
--pgr4_native_render_thread	true	Record and submit on a render thread, so the game thread only captures each call
--pgr4_native_submit_draws=<n>	256	Submit the frame so far every n draws (0 submits once per frame)
--pgr4_native_async_pipelines	true	Compile new pipelines on worker threads and skip the draws that need them
--pgr4_native_pipeline_threads=<n>	0	Number of pipeline compile threads (0 uses a quarter of the hardware threads, 1 to 4)
--pgr4_native_pipeline_wait	true	Hold back a frame that skipped draws and wait for their pipelines, up to 0.5 s
--pgr4_native_generic_pipelines	true	Let a draw whose specialized pipeline is still compiling use the unspecialized one if it is ready
--pgr4_native_pipeline_cache	true	Keep shaders and pipelines across runs and compile them at start-up
--pgr4_native_bool_specialize	true	Translate shaders for each draw's bool constants, without the branches
--pgr4_native_resolve_specialize	true	Compile a copy shader for each kind of resolve
--pgr4_native_dynamic_depth_bias	true	Set polygon offset per draw instead of per pipeline
--pgr4_native_texture_capture_order	true	Bind textures as they were when the game queued the draw
--pgr4_native_texture_memory_soft_mb=<n>	512	Above this much texture memory, destroy textures unused for _soft_lifetime_s (30) seconds (0 means no limit)
--pgr4_native_texture_memory_hard_mb=<n>	1024	Above this much texture memory, destroy the least recently used textures (0 means no limit)
--pgr4_native_msaa=<n>	2	Samples per pixel of the 3D scene's MSAA when the upscaler is off: 1, 2 (the game's own), 4 or 8 (fewer if the GPU lacks them)

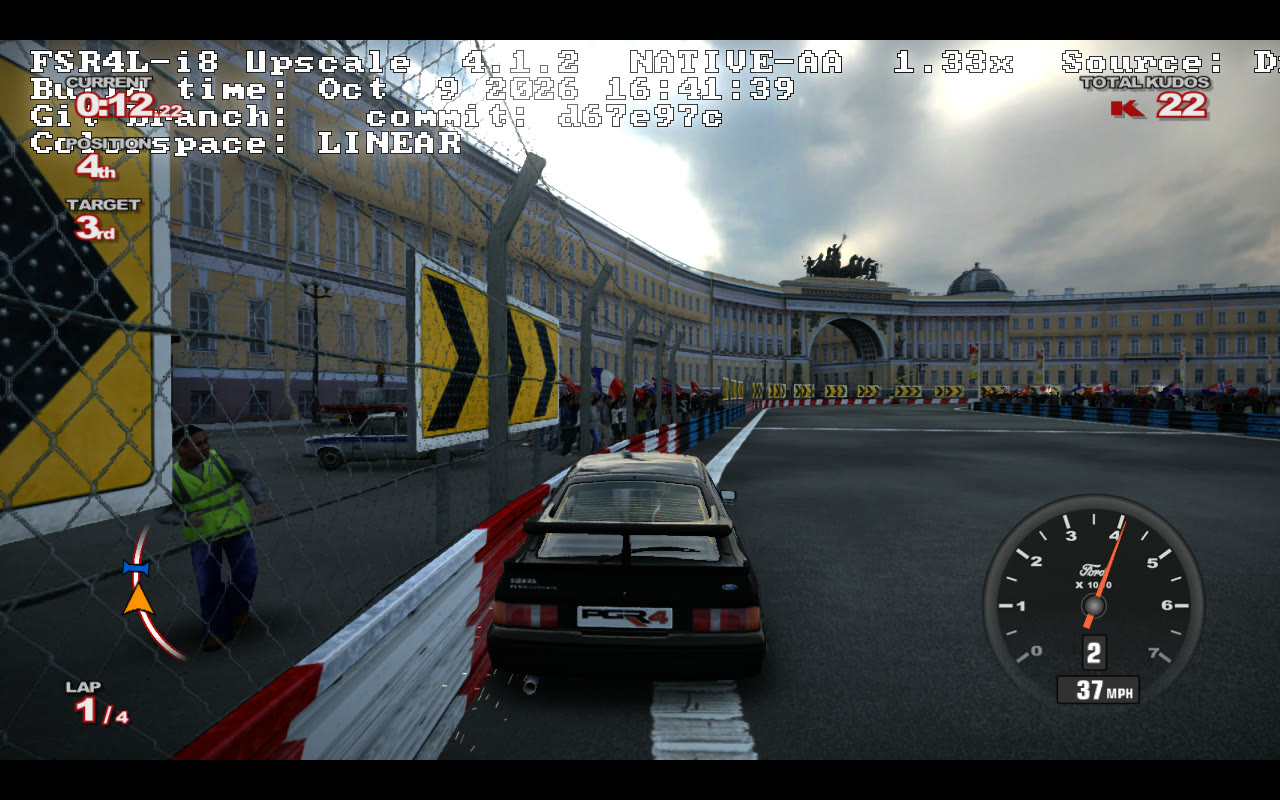

--pgr4_native_upscaler	false	Antialias and upscale the 3D scene with FidelityFX Super Resolution instead of MSAA (F7 switches, F8 shows its debug view: --pgr4_native_fsr_debug). OptiScaler and FSR 4: scripts/release/README.md, "Upscaling"
--pgr4_native_upscaler_width=<n>	1280	Width the upscaler's scene renders at, 320 to 1280 (853 for FSR's Quality, 640 for Performance)
--pgr4_native_upscaler_height=<n>	800	Height the upscaler's scene renders at, from a quarter of the render height up to it (800 for antialiasing only, 533 for FSR's Quality, 400 for Performance)
--pgr4_native_upscaler_target_fps=<n>	0	Lower the upscaler's render size each frame, from the width and height down to _min_height, while the GPU's time per frame is above 90 % of a frame's time: at this frame rate, or at the lower one the frames are shown at (--pgr4_native_present_interval, frame generation). 0 keeps a fixed size
--pgr4_native_upscaler_min_height=<n>	360	With a target frame rate, the least height the upscaler's scene renders at, down to a quarter of the render height
--pgr4_native_frame_generation	false	With the upscaler on and the frames paced (--pgr4_native_frame_latency above 0), show a frame FidelityFX Frame Generation makes between each two, the game at half the display's refresh rate. scripts/release/README.md, "Frame generation"
--pgr4_native_fsr_debug	false	FidelityFX's debug views of the upscaled scene and the generated frames, and with FSR 4 AMD's watermark of the model it runs (F8 switches; the Developer settings' FSR debug view)
--pgr4_native_anisotropy=<n>	1	Minimum anisotropic filtering (2, 4, 8 or 16) for linearly filtered textures with mips. 1 keeps the game's own, and the release settings use 16
--pgr4_native_frame_latency=<n>	3	In primary mode, begin a frame once the display has shown the frame n before it (1 to 3, or 0 for the game's own vblank pacing)
--pgr4_native_present_interval=<n>	1	With vsync, show each frame for n display refreshes (1 to 3), so the game runs evenly at the refresh rate over n: 90, 45 or 30 fps at 90 Hz (the Display settings' Frame rate)
--pgr4_native_low_latency	true	Begin each frame as late as the time recent frames waited for the display allows
--pgr4_native_latency_margin_us=<n>	4000	With low latency on, how long before its display slot the GPU should finish a frame
--pgr4_native_hdr	true	Output HDR10 when the display supports it (under Proton, set DXVK_HDR=1)
--pgr4_native_hdr_peak_nits=<n>	0	Peak luminance the HDR highlights are fitted to (0 uses the display's, or 1000 if it reports none)
--pgr4_native_hdr_paper_white=<n>	400	Luminance of SDR white in HDR output, in nits
--pgr4_60fps	false	Present every vblank instead of at the game's 30 FPS interval, when the native renderer does not pace the frames
--pgr4_automatic_keep_revs	true	The automatic transmission shifts down once the engine would run under 90 % of the car's upshift point in the lower gear (the game's own factor is 0.82 to 0.9), keeping the revs and a turbo's boost up
--pgr4_headlights=<race|on|off>	race	The lights of every car and bike: as the race's lighting has them, on or off. F5 (bind_headlights) switches them from what they show, until the setting changes
--pgr4_game_debug_menus	false	Show the debug entries of the game's own menus
--content_root=<dir>	<game>\Content	Folder of content packages (title update, DLC) installed at startup
--user_language=<n>	1	The game's language: 1 English, 2 Japanese, 3 German, 4 French, 5 Spanish, 6 Italian, 7 Korean, 8 Traditional Chinese, 10 Simplified Chinese, 11 Polish, 12 Russian
--pgr4_native_csv=<file>	off	Write per-frame counters and CPU times to this file
--pgr4_native_profile	false	Add the draw path's CPU time per stage to the CSV
--pgr4_native_gpu_timing	false	Log GPU time per pass (_shaders times per shader pair instead)
--pgr4_native_capture_dir=<dir>	off	Folder for captures, marks and draw logs. A capture.request file there or F12 takes a capture, and draw-debug.txt there is read
--pgr4_native_capture_xenos	true	Also capture the Xenos plugin's frame and the PSNR between the two, holding the game thread. When false, only the native PNG is written, from another thread
--pgr4_native_glitch_catch=<prefix>	off	Keep the last 5 s of frames and write whole-image jumps and marks to <prefix>glitch-<frame>.rec and mark-<frame>.rec
--pgr4_native_mark_audit=<n>	0	With each mark, log the next n frames' draws and check their shaders, registers and shared memory against the guest's
--pgr4_native_draw_log_from=<n>	-1 (off)	Log every draw of _draw_log_frames (1) frames, starting at native frame n
--pgr4_native_coherency_check	false	Check vertex and index data and registers against guest memory (slow)
--pgr4_native_track_verify	false	Check the state tracker against the guest's register shadow after each draw (slow)
--pgr4_native_gpu_serialize	false	Wait for the GPU at the end of every frame (slow)

The REXCVAR_DEFINE_* lines in src/ and patches/ describe the rest.

Changes

Renderer:

• Draws from the game's own Xbox 360 D3D calls instead of emulating the GPU, so each draw runs once at full size, without the console's EDRAM tiling. The Xenos plugin stays in the binary for comparison, one key away.
• The game thread captures each call and a render thread records it. The frame is submitted in parts as it is recorded.
• Shaders go through ReXGlue's DXBC translator and are specialized for bool constants and texture signs. Pipelines compile on worker threads and are stored and prewarmed across runs. No frame is shown with draws missing.
• Textures are untiled on worker threads, which also record their uploads ahead of the frame's render passes. Texture memory is bounded, and each draw binds textures as they were when it was queued.
• Resolves run through compute shaders specialized for each kind. Guest clears are deferred and merged.
• The renderer presents from the game's own window, so gamescope flips it directly. It applies the display controller's gamma ramp, outputs HDR10, and can add anisotropic filtering.
• Frames are paced on the display with a latency sleep. Motion blur is scaled to the frame time, so it is as long as at 30 FPS.

Game (games/):

• Title Update #2 and DLC work as the packages players have, installed and applied at startup the way Xenia Canary does it.
• Register-as-local code generation, profile-guided optimization and a Zen 2 target.
• Garage walking works at high frame rates, the car preview no longer freezes in its search, and the garage's Geometry Wars cabinet starts its own game and returns to PGR4.

SDK (patches/):

• Less CPU time and fewer wineserver requests under Proton. The command processor and timer threads block instead of polling, high-resolution waits stay in the process, resuming a running thread and querying a priority no longer reach the server, guest physical memory is committed with its section, the pad is read on a timer thread, and db16cyc becomes a spin-wait hint.
• Code generation unpacks vupkd3d128 NORMPACKED64 correctly. The shader translator samples computed-LOD fetches with sample_b and drops sign handling for textures known to be unsigned.
• Presenting on the display's vblank, and statistics for guest frames and the command stream.
• XMA decoding fixes, and a decoder flush instead of a reopen for each stream. Canary's XMP music player, with the game's own music volume read from the save.
• Keyboard prompts with default text, key binds that fire once per press, installation of title update and content packages, and a check that the loaded image is the one the code was generated from.

License

MIT (LICENSE). Third-party notices: THIRD_PARTY_NOTICES.md.
