SegaSonic the Hedgehog — native port

SegaSonic The Hedgehog — native port

Sega's 1993 arcade game SegaSonic The Hedgehog (Sega System 32) as a native game for Windows, Linux and macOS: not an emulator, but the game's own program decompiled into C (segasonic-decomp) and built for each system, with a console version made for playing at home beside the arcade one.

This repository and its downloads contain no game data. As with n64decomp/sm64, you bring your own ROM set: the first time the game runs, it takes its graphics, sound and data out of your MAME sonic.zip and never needs it again. No executable carries the ROM or anything from it.

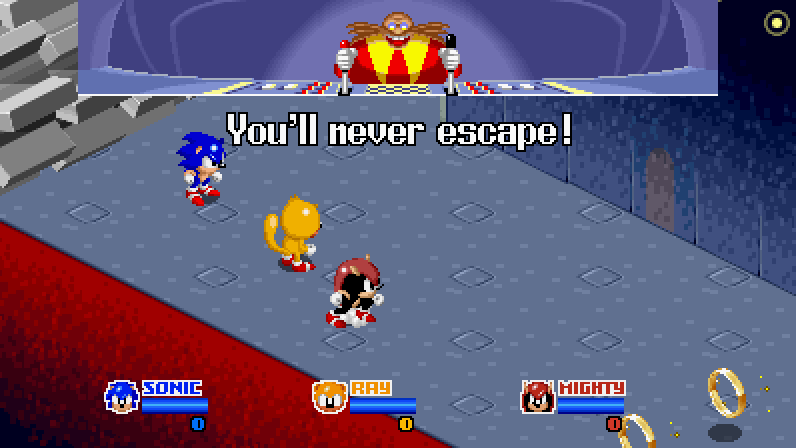

_{The console version with WIDE on, as its window shows it (tools/make_screenshots.py makes them from scripted runs).}

Playing

Download

The latest release has a package for Windows (x64), Linux (x64) and macOS (Apple silicon and Intel, one app); every change to the code is built the same way by GitHub Actions, whose runs keep the packages as artifacts. Unpack it anywhere:

Package	What is in it
Windows segasonic-windows-x64.zip	SegaSonic.exe (the console version), SegaSonic Arcade.exe (the arcade one), and the pictures the window draws its letters and controls with
Linux segasonic-linux-x64.tar.gz	SegaSonic, SegaSonic Arcade and the same pictures
macOS segasonic-macos-universal.zip	SegaSonic.app and SegaSonic Arcade.app

Each has a README.txt that says which game is which, and the licenses of what the executables contain (LICENSE.txt, licenses/). SDL2 and the C runtime are built into the executables: nothing else to install. The macOS apps are not signed by a developer: the first time, open one with right click → Open (on macOS 15 and later, try to open it, then System Settings → Privacy & Security → Open Anyway).

The first run

The game needs the arcade's ROM set: MAME's sonic (SegaSonic The Hedgehog, Japan, rev. C), the sonic.zip of 18 files. Put it beside the game (the .app on macOS) before starting it, or start the game and drop it on the window that asks for it. The game checks every file by its CRC32, takes out what it uses into segasonic.assets (in the folder where it keeps its files, below) and starts; from then on it loads that pack and never opens the ROM set again. The pack is made from your ROM: it is yours, not one to share.

The console version: SegaSonic

SegaSonic is the arcade game made for playing at home, in a layer of its own over the same program (console/); the arcade game underneath runs as it does on the board.

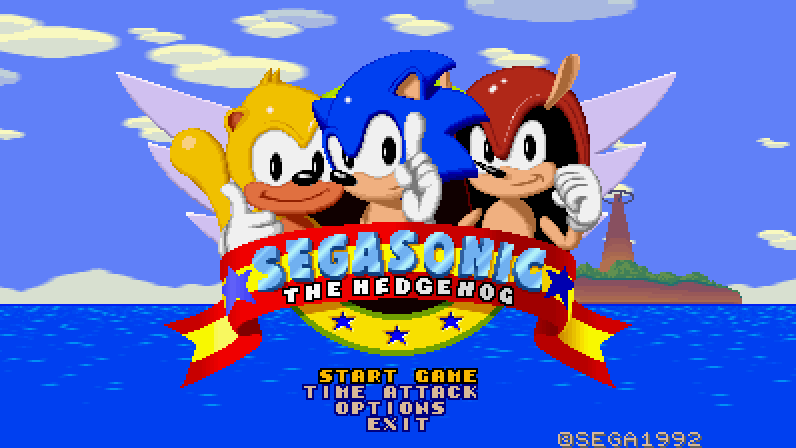

• No coins. Power-on goes to the SEGA logo (with a jingle of its own) and the title: PRESS START opens a menu, START GAME, TIME ATTACK, OPTIONS, EXIT. A game has CONTINUES (3 at first) instead of credits, or plays free.
• Up to three players, as the arcade's 3-player cabinet: each with their own keys and game controller. A player joins at player select, or whenever their start prompt is up.
• WIDE (OPTIONS → VIDEO): a 16:9 picture. The stages, the title, the ranking and player select are drawn wider; past where the board's camera ever looks, the stage's map goes on as its rows and walls do. The scenes, drawn for 4:3, show between bars.

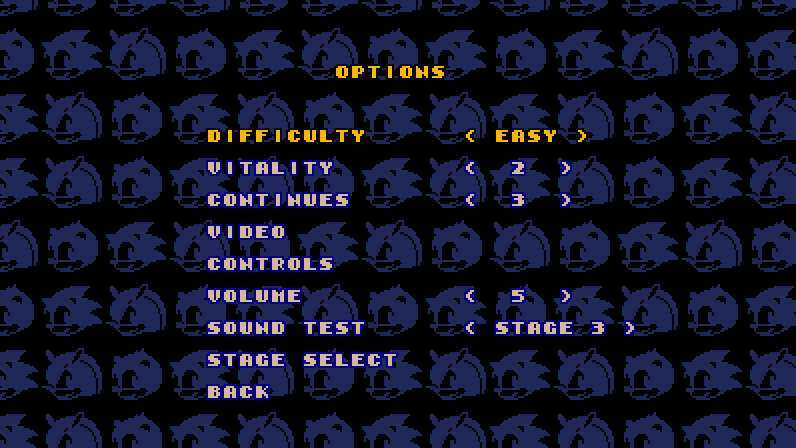

• OPTIONS: DIFFICULTY and VITALITY (the operator's settings), CONTINUES, VIDEO (WINDOW size, FULL SCREEN, PIXELS: sharp, smooth, soft or a CRT's scanlines and mask, WIDE), CONTROLS, VOLUME, SOUND TEST (the song picked becomes the title's music) and STAGE SELECT.
• TIME ATTACK: a level, or the whole game from Eggman's place on the map. The clock runs through stages, scenes and continues, with a split at the end of each level; BEST TIMES and BEST RUN keep the records.

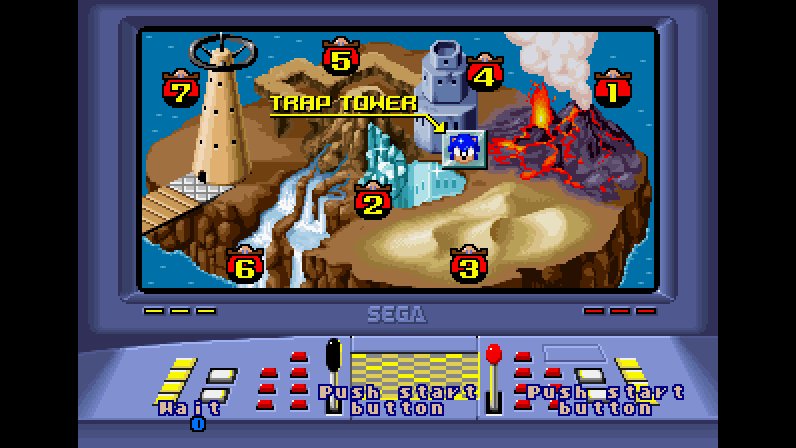

• STAGE SELECT: the island map with every level open; the levels cleared in this session's games show in the map's cleared colours.

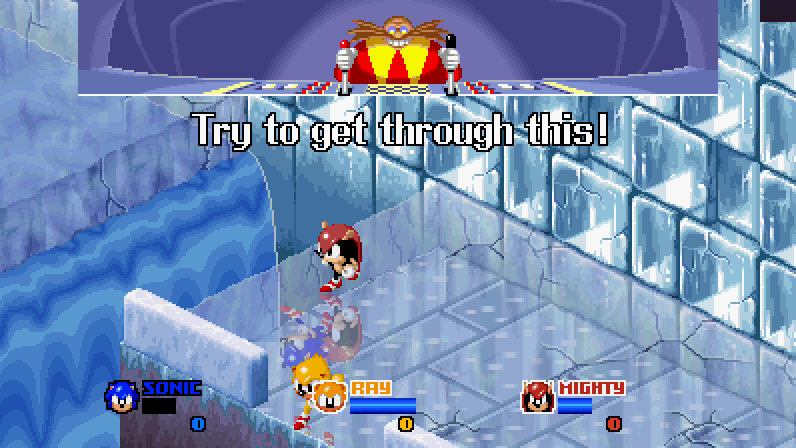

• In English: the how to play and Eggman's lines are in the game's own English text boxes, which its program never shows (the Japanese board shows Japanese ones).
• Pause: start (or back) in a stage pauses the game and its scripted scenes.
• CONTROLS: every action's keys and game controller button, for each player, on screen with Kenney's Input Prompts.

Controls

The console version's actions, by default (OPTIONS → CONTROLS changes them; a player's game controller is the one plugged in in their turn):

Action	Player 1	Player 2	Player 3	Game controller
Move (the trackball)	arrows or WASD, or the mouse (after a click)	I J K L	keypad 8 4 5 6	pad or left stick
Jump, spin	Z or Space, or the left mouse button	U	keypad 0	A
Start, pause	Enter or P	2	3	Start
Accept (menus)	Enter, Z or Space	U	keypad 0	A
Back (menus), pause	Escape or Backspace	O	keypad .	B

The mouse is a pointer until a click in the window makes it player 1's trackball (the pointer hides); a pause (Escape) gives the pointer back, and a click takes it again. Alt+F4 or Cmd+Q close the game at any time; the title's menu has EXIT.

The window, in both versions: F11 or Alt+Enter full screen, F3 smooth or sharp pixels, F4 whether the mouse's ball rolls on when the mouse stops, F5 and F6 the mouse slower or faster.

The arcade version: SegaSonic Arcade

SegaSonic Arcade is the arcade game as the board runs it, matching MAME frame by frame: put a coin in (5), then start (1). Player 1's controls:

Control	Keys
Trackball	the mouse, or the arrow keys
Button	left mouse button, Z or space
Coins 1-3, starts 1-3	5, 6, 7 and 1, 2, 3
Service, test	9 and F2 (in the operator's menu, 9 moves the cursor and F2 picks)
Quit	Escape

The mouse is always the trackball here, and turns as the arcade's does: the ball turns with the mouse and, when the mouse stops or is lifted, rolls on and slows down; the right button holds it. Each game controller is a player: the left stick is the trackball, A the button, Start the start and Back a coin.

Where the game keeps its files

Beside the executable on Windows; ~/.local/share/SegaSonic on Linux; ~/Library/Application Support/SegaSonic on macOS:

File	What it holds
segasonic.assets	the assets pack the first run made from your ROM set
segasonic.ini, sonic.ini	SegaSonic's and SegaSonic Arcade's window settings, with what each one does (the game reads the file again whenever it is saved while it runs)
controls.ini	the console version's keys and buttons, a section a player
segasonic.times	TIME ATTACK's best times and best run
segasonic.eeprom, sonic.eeprom	each one's game settings and bookkeeping, as the board's EEPROM keeps them

Building

Requirements: CMake 3.20 or newer, a C11 / C++17 compiler (Visual Studio Build Tools on Windows, GCC or Clang elsewhere), Python 3.10 or newer, and SDL2: on Windows SDL2-devel-2.x.x-VC.zip from SDL's releases unpacked into build/downloads/sdl2/ (or SDL2_DIR pointed at it), on Linux the system's (libsdl2-dev), on macOS Homebrew's (sdl2). With -DSEGASONIC_STATIC_SDL2=ON the build takes SDL2's source instead and builds it into the executables, as the downloads are.

1. Put your MAME sonic.zip, or the files inside it, in rom/, and check it:

   python tools/verify_rom.py


2. Build. With rom/ there, the build also makes build/bin/segasonic.assets; without it, only the executables, which make the pack on their first run:

   cmake -S . -B build/cmake


   cmake --build build/cmake --config Release


3. Play: build/bin/SegaSonic (the console version) or build/bin/SegaSonic Arcade (the arcade one); .apps on macOS.

The build also makes the game without a window, for scripted runs (sonic_game_headless, and segasonic_console_headless, whose --actions presses the console's actions), and the tools that check the game against MAME's (s32ref; -DSEGASONIC_REFERENCE_TOOLS=OFF leaves them out).

How it is checked

The arcade version is the decompilation unchanged. Its 98 scenarios (tests/controls/: the attract mode, games for one to three players, every stage, the ending, the test mode) run on the game and on the original program on MAME's V60 core, and the two match frame by frame, the board's memories, the picture and the sound, on Windows (MSVC) and on Linux (GCC and Clang):

python tools/check_scenarios.py --video --sound

The console version changes the game only where console/replaced.txt says: its own versions of those functions, in console/, while the arcade build keeps the originals. It runs the same on every system, frame by frame: segasonic_console_headless --actions drives its menus as the window's keys do, and python tools/make_screenshots.py remakes the pictures at the top of this page from such runs.

This repository and segasonic-decomp

segasonic-decomp is the decompilation: the faithful reference, with the decompiler, the names and evidence (symbols.txt), the assets' formats, the board, video and sound libraries and the tools that check them, and its README explains how to read and change the C. This repository merges it and adds the port; what belongs to the decompilation changes there first and comes here by merge:

console/                the console version: what it changes in the game (replaced.txt) and how
                        (console.c), and what is next (PLAN.md)
ports/sdl2/             the window: the picture, sound and controls on SDL2, the settings, the first run
                        (first_run.c), the console's actions and their keys (actions.c, controls.ini),
                        the pictures of Kenney's (prompts/, font/), the executables' icon (icon/,
                        tools/make_icon.py)
ports/headless/         the game without a window, for checks and screenshots
tools/make_screenshots.py  the screenshots above
.github/workflows/      the builds and packages for Windows, Linux and macOS

Credits

• The game: SegaSonic The Hedgehog, SEGA, 1993.
• Kenney: Input Prompts Pixel, the keys and buttons of CONTROLS (ports/sdl2/prompts/), and Kenney Mini (Kenney Fonts), the letters of the first run's window (ports/sdl2/font/); both CC0.
• MAME: the reference the game is checked against (its V60 and Z80 cores, its System 32 video and RF5C68), and ymfm, the YM3438's.
• SDL (zlib license), built into the executables.

Legal

• This project is licensed under the BSD 3-Clause License; see LICENSE.
• The C in src/ is the game's program decompiled into a new form: logic only, with names and comments written for this project. No ROM contents (graphics, sound, data tables, level data) and no extracted assets are distributed by this project; they come from your own ROM. The screenshots in docs/screenshots/ show the game running from this code.
• runtime/, tools/v60/disassembler.py and tools/z80/disassembler.py follow the behavior of MAME source files and, for the YM3438, of ymfm, and tools/reference/mame/ holds copies of MAME files. Those are BSD-3-Clause; see tools/reference/mame/LICENSE. tools/reference/ymfm/ holds a copy of ymfm (BSD-3-Clause; see its LICENSE).
• Kenney's pictures and font are CC0; see the License.txt beside each.
• SegaSonic The Hedgehog is a trademark of SEGA. This project is not affiliated with or endorsed by SEGA.
