sms-pc-port

Name: sms-pc-port
Author: TekRantGaming

sms-pc-port is a native PC port of Super Mario Sunshine for Windows and Linux that offers up to 8x resolution and an HD texture pack.

Type: PC port
Game: Super Mario Sunshine
Runs on Windows and Linux
By TekRantGaming
Latest release v1.3.0, 2026-10-05
Source: https://github.com/TekRantGaming/sms-pc-port
Website: https://github.com/TekRantGaming/sms-pc-port/releases/latest

README

A native PC port of Super Mario Sunshine, with the launcher and options of a modern PC release.

_{Built from the matching decompilation. No game data included: bring your own disc image of Super Mario Sunshine (North America, GMSE01, revision 0).}

Highlights

Up to 8x resolution Render at up to 5120 x 4224, with a setting recommended for your monitor. A high setting supersamples down to your screen.	Real anti-aliasing 2x, 4x or 8x MSAA, FXAA, anisotropic filtering up to 16x and contrast-adaptive sharpening.	HD textures in one click The launcher downloads and installs the UHD Texture Pack, which remakes over 2,000 textures. Switch it on or off at any time.
Every display mode Windowed, borderless or exclusive fullscreen at any resolution and refresh rate. Widescreen up to 32:9, and vsync off, on or adaptive.	Modern camera Invert X and Y separately, a free camera that stays where you point it, adjustable speed, and mouse look.	Online co-op ^new Host or join a game from the launcher and see up to seven friends in the same level, animated and named. Works on your home network or over the internet.
60 fps Gameplay at 60 fps at the original speed. Menus and movies stay at 30.	Rebinding and controllers Rebind every key, and use Xbox, PlayStation and other controllers automatically.	One-step install Point the launcher at your disc image and it checks it and puts it in place.

The launcher

Everything is set up before the game starts, in a launcher that works with the mouse, the keyboard or a controller. Settings are saved to plain-text settings.txt and bindings.txt files, so they can also be edited by hand.

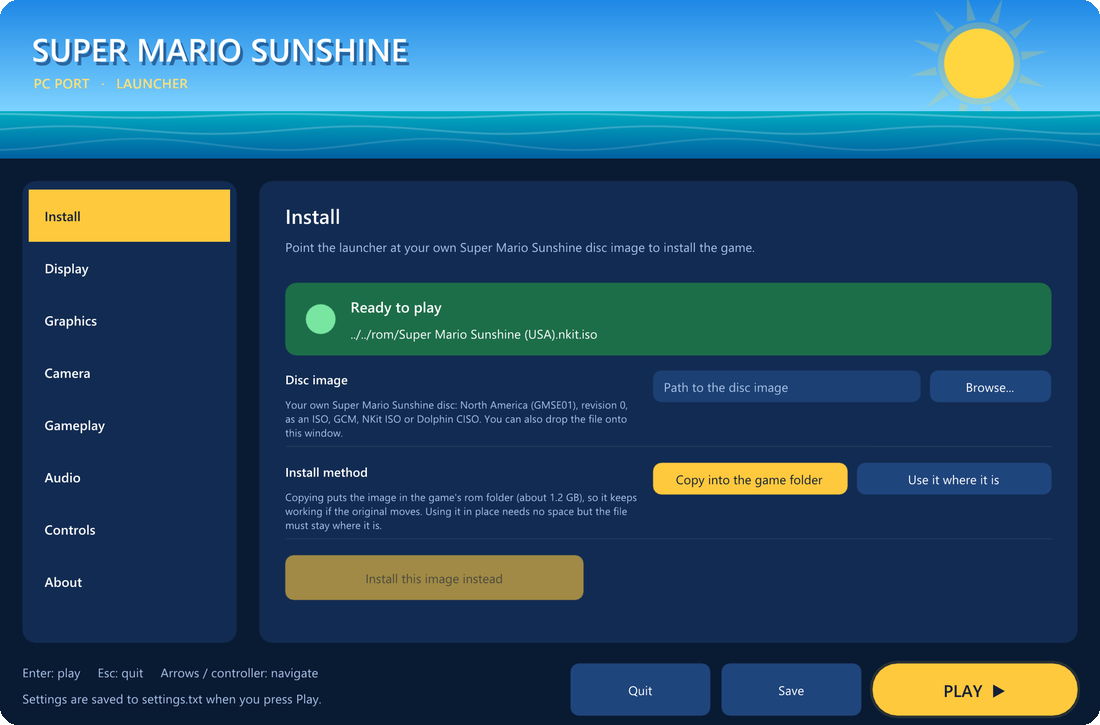

	Install Point the launcher at your disc image with Browse, or drag the file onto the window. Checks that it is the right game, region and revision, with clear advice if not (including converting Dolphin RVZ files) Copies it into the game folder with a progress bar, or uses it where it is Accepts ISO, GCM, NKit ISO and Dolphin CISO images

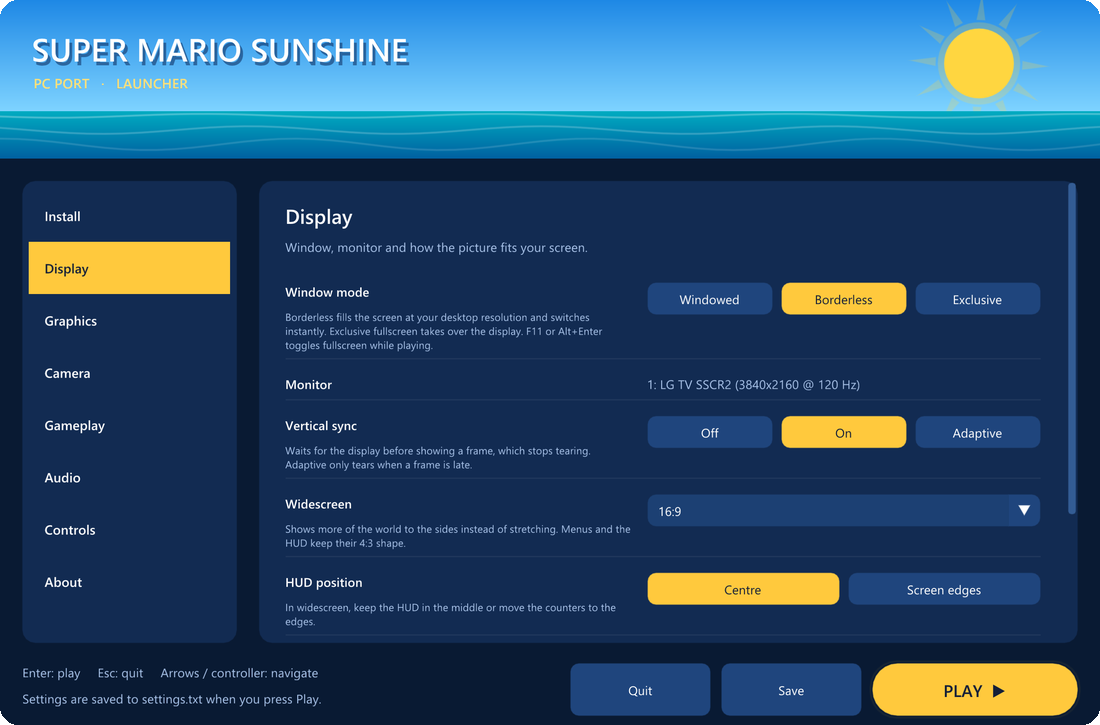

Display Windowed, borderless or exclusive fullscreen, with a resolution and refresh-rate picker Choose the monitor Vsync off, on or adaptive Widescreen 16:9, 16:10, 21:9, 32:9, or matched to your monitor, with the HUD centred or at the screen edges Keep, stretch or integer aspect, and a smooth, sharp or nearest scaling filter

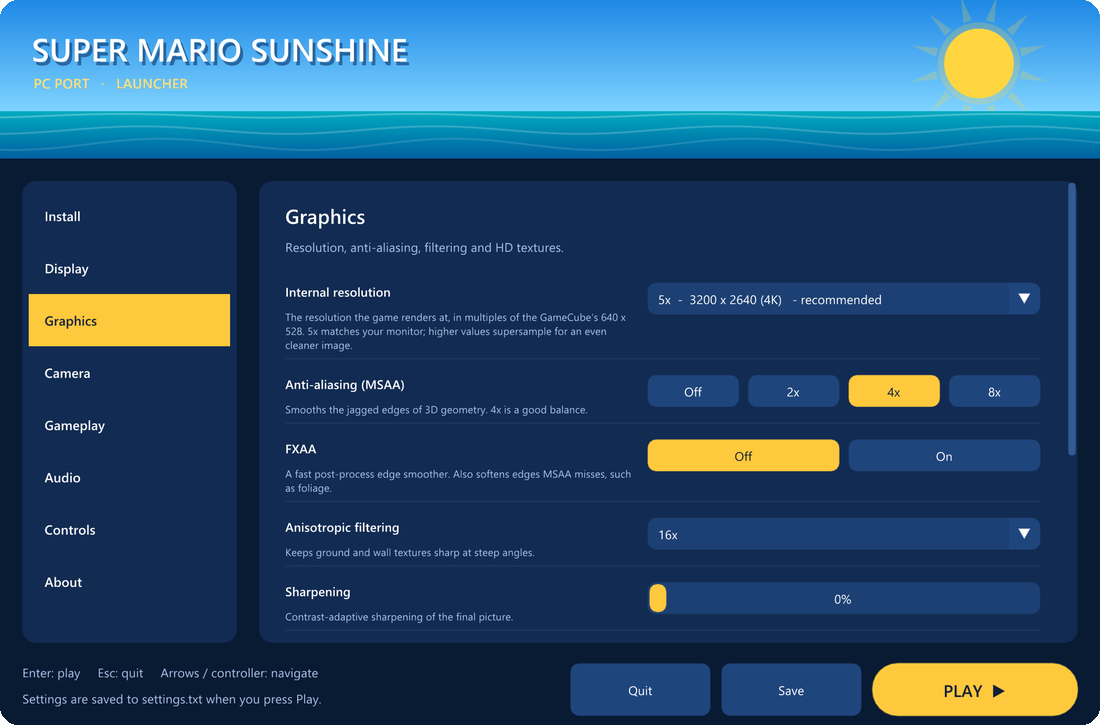

	Graphics Internal resolution from 1x (640 x 528) to 8x, with one recommended for your display MSAA 2x, 4x or 8x, and FXAA Anisotropic filtering up to 16x Sharpening and brightness HD texture pack: install, switch on or off, set its memory budget HD cutscenes: all 21 movies at 3x resolution, built from your own disc; install, then switch on or off

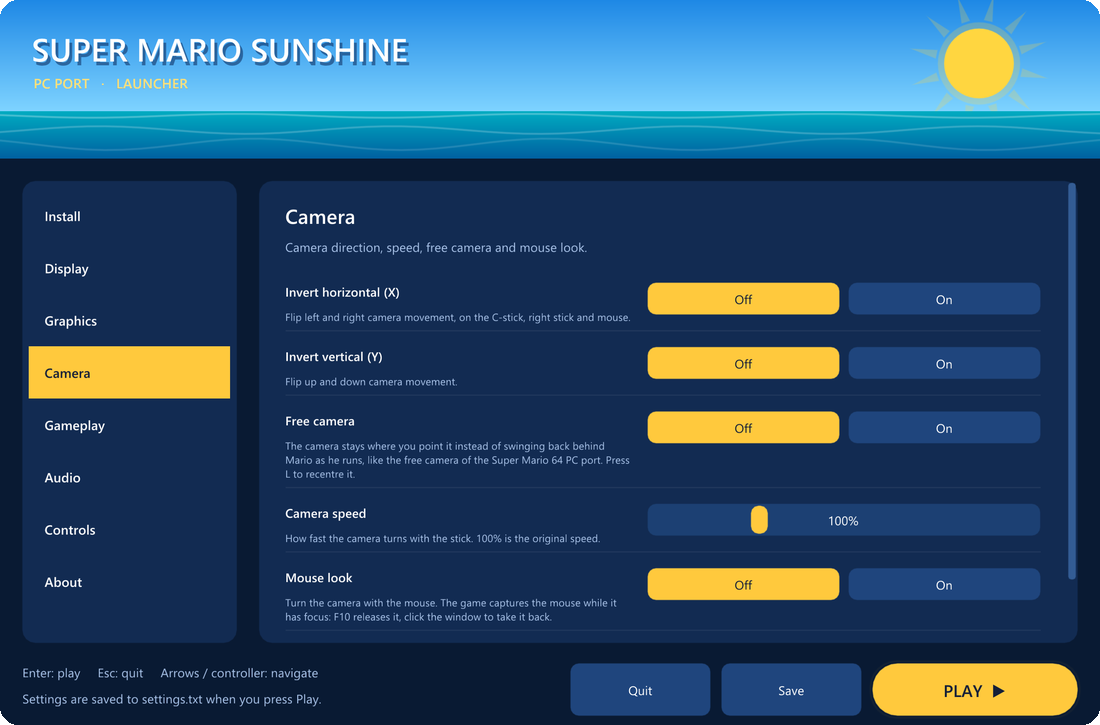

Camera Invert horizontal and invert vertical, separately, on the C-stick, right stick, camera keys and mouse Free camera: the camera stays where you point it instead of swinging back behind Mario, like the free camera of the Super Mario 64 PC port. Press L to recentre it Camera speed from 25% to 300% Mouse look with its own sensitivity

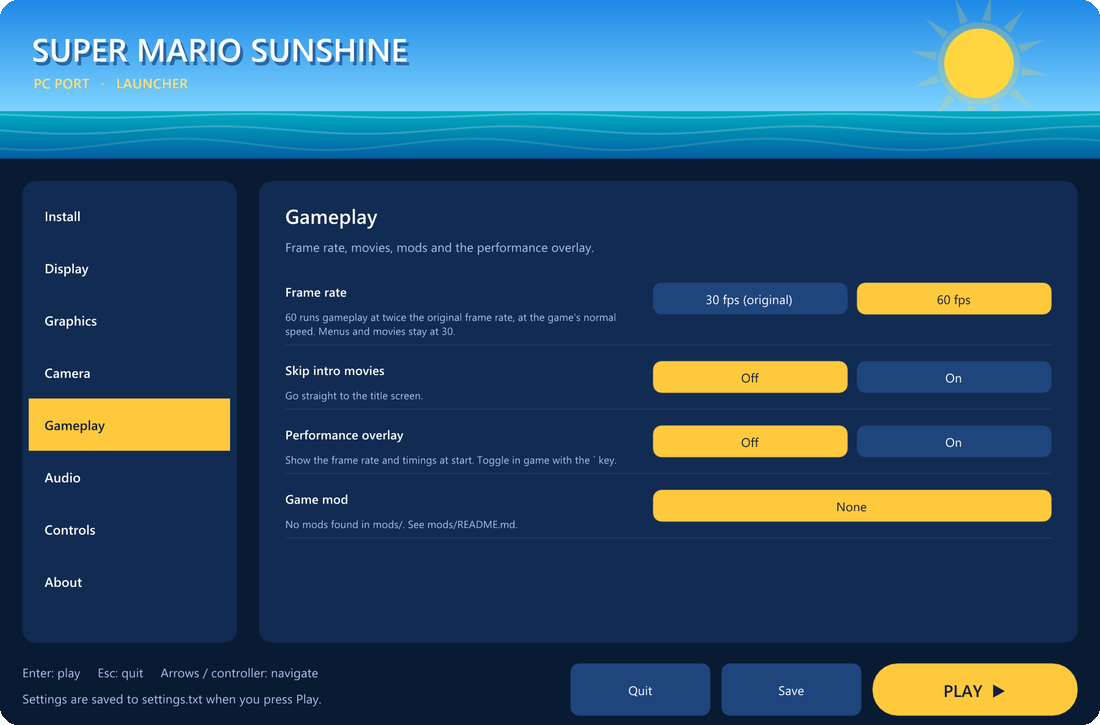

	Gameplay and audio 60 fps gameplay, at the game's normal speed Skip the intro movies Game mods from `mods/` A performance overlay with frame times Sound on or off, and master volume

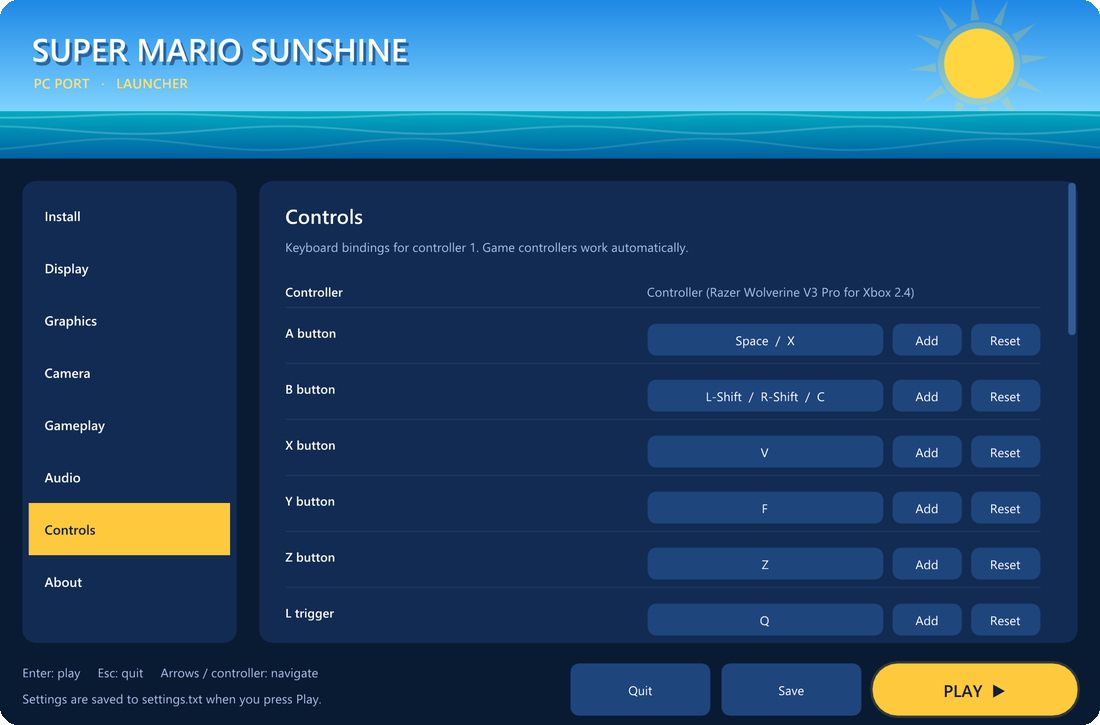

Controls Rebind every control: click it and press a key, add second keys, or reset Shows the controllers connected; Xbox, PlayStation, Switch Pro and others work automatically About Show the launcher at start, or go straight to the game (hold Shift to bring it back) The in-game hotkeys and where your settings live

Play together online

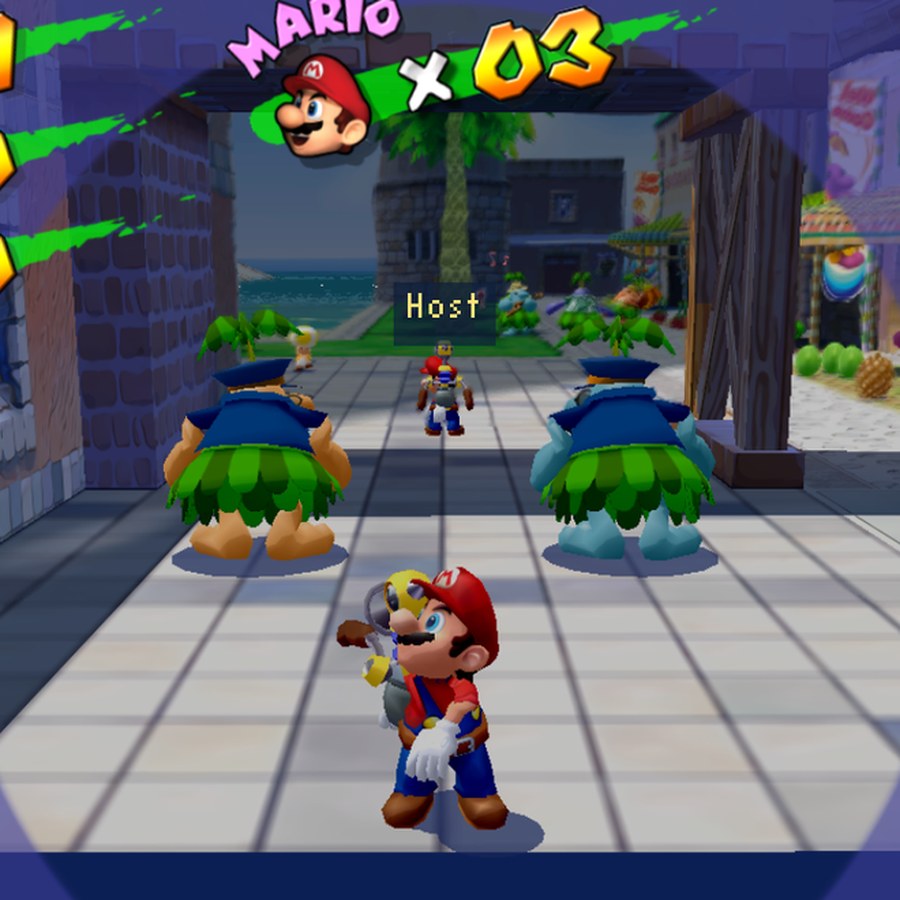

Another player's Mario, with a name tag, in Delfino Plaza

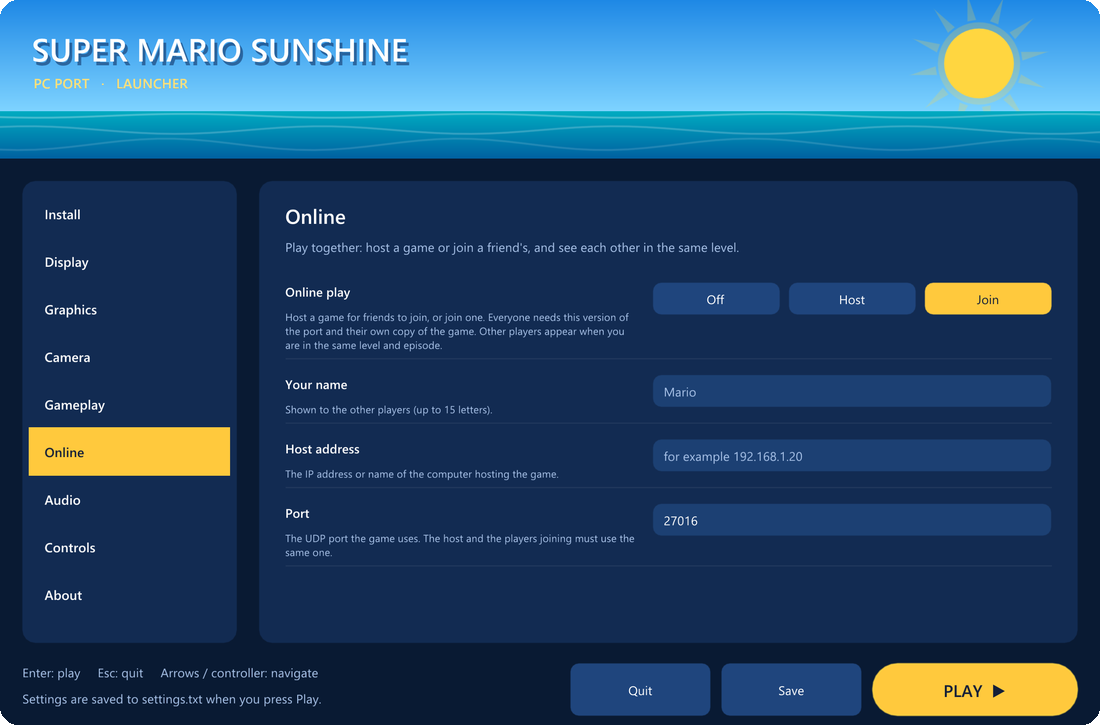

On the Online page, one player chooses Host and the others choose Join and enter the host's address. Everyone presses Play.

Other players appear in your game when you are in the same level and episode
Their Mario is fully animated, with his cap, hands and FLUDD with the nozzle he has on
A name tag shows who is who
Up to 8 players; on a home network it works straight away, and over the internet the host forwards UDP port 27016

Each player plays their own game: levels, enemies and Shine Sprites are not shared yet. This is the first stage of online play. Shared progress is next.

HD textures in one click

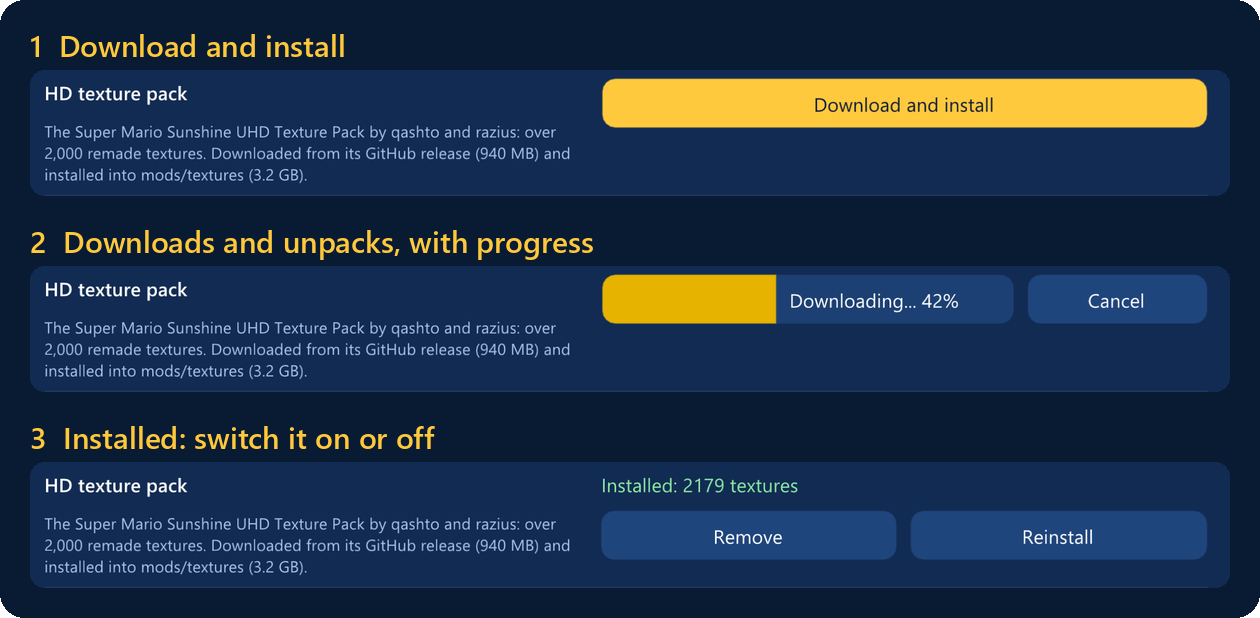

Installing the HD texture pack from the launcher

The Super Mario Sunshine UHD Texture Pack by qashto and razius is downloaded from its own GitHub release and installed for you, with progress, resume and Cancel. Nothing else needs installing. Any texture pack made for Dolphin also works when placed in mods/textures/.

In game

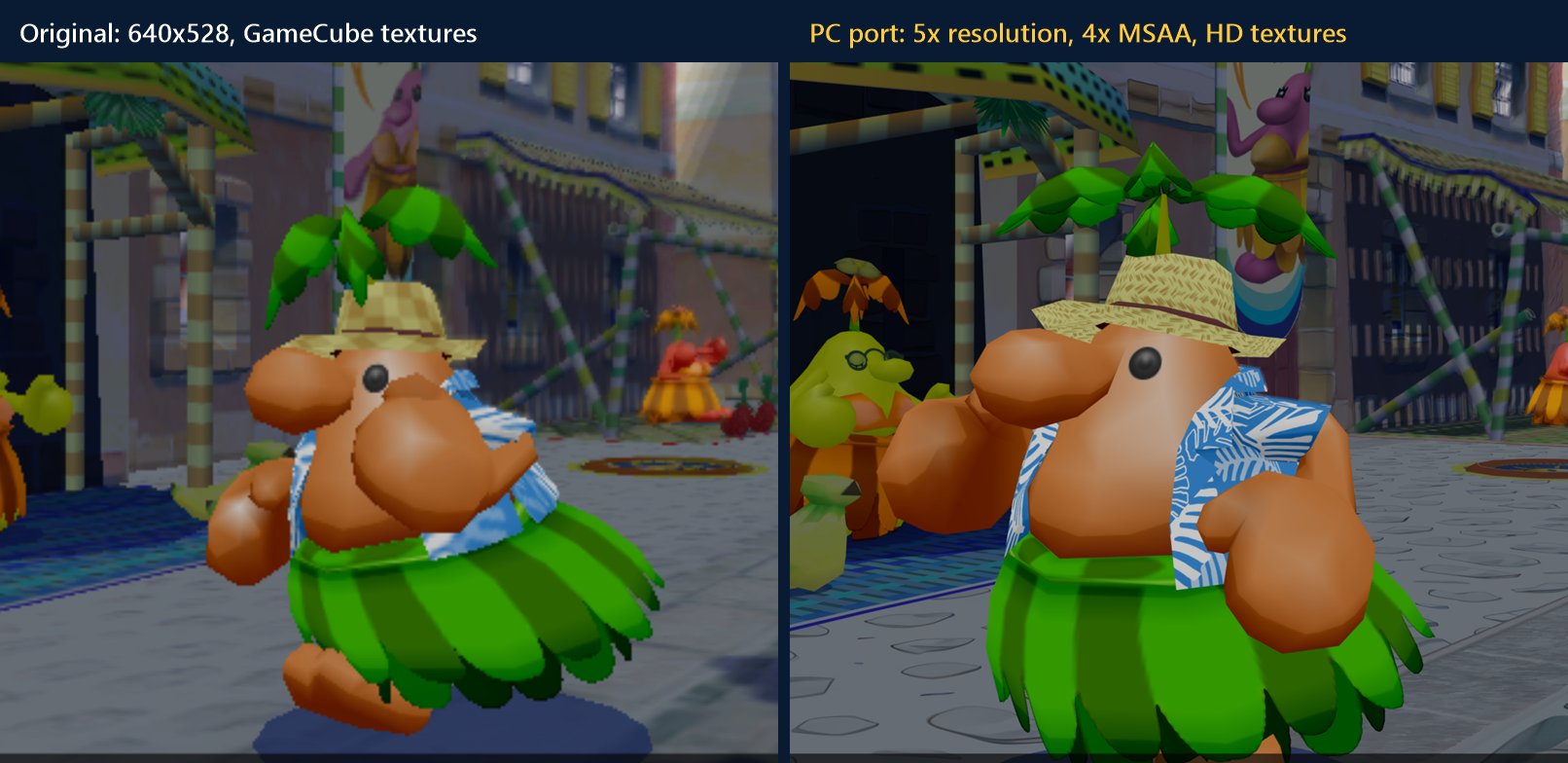

The original 640x528 picture beside the PC port at 5x resolution with 4x MSAA and HD textures

_{The game's own demo in Delfino Plaza: the original 640 x 528 picture (left) and the PC port at 5x resolution with 4x MSAA and HD textures (right).}

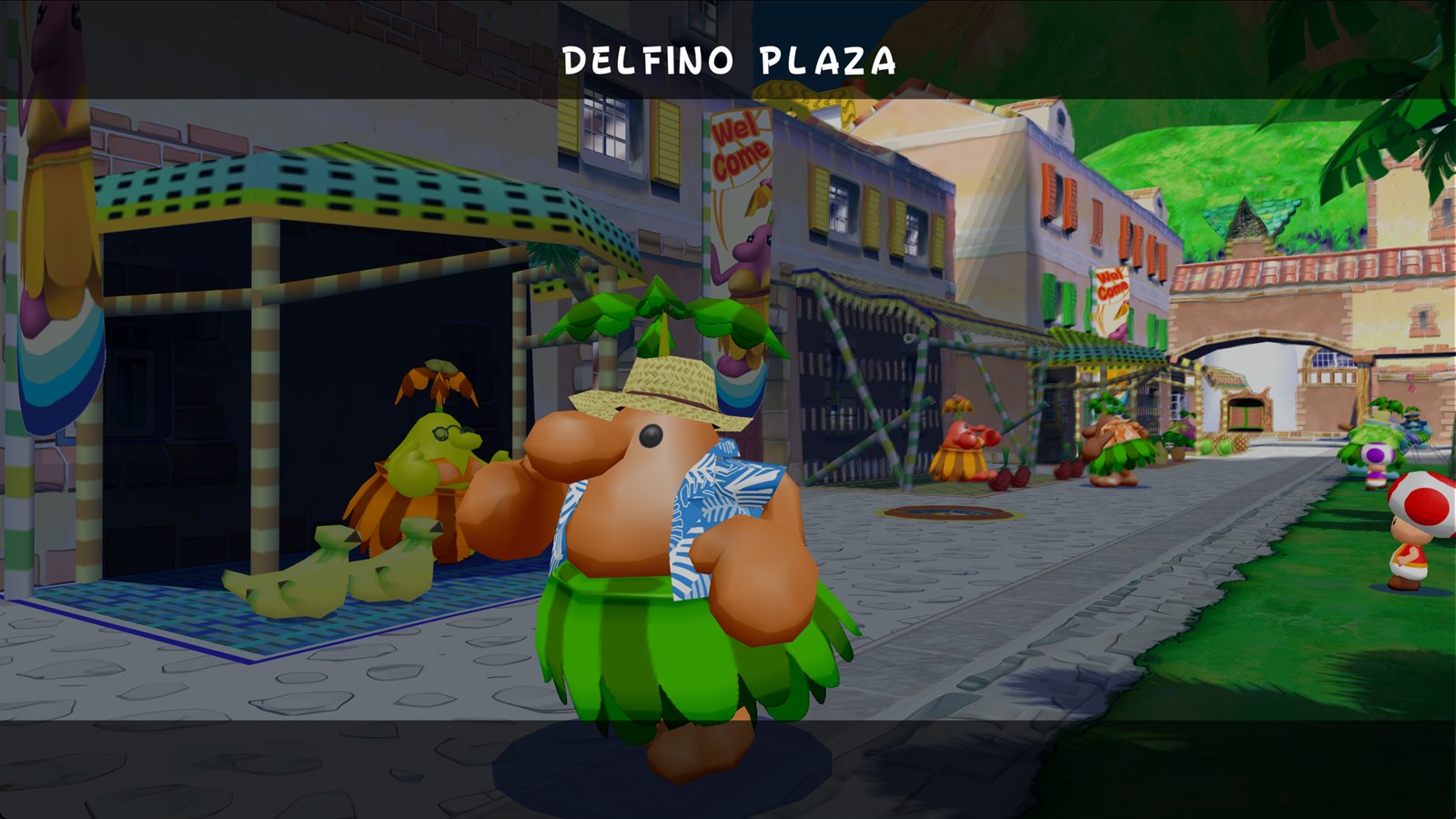

Delfino Plaza at 5x resolution with HD textures

Delfino Plaza at 5x resolution with HD textures

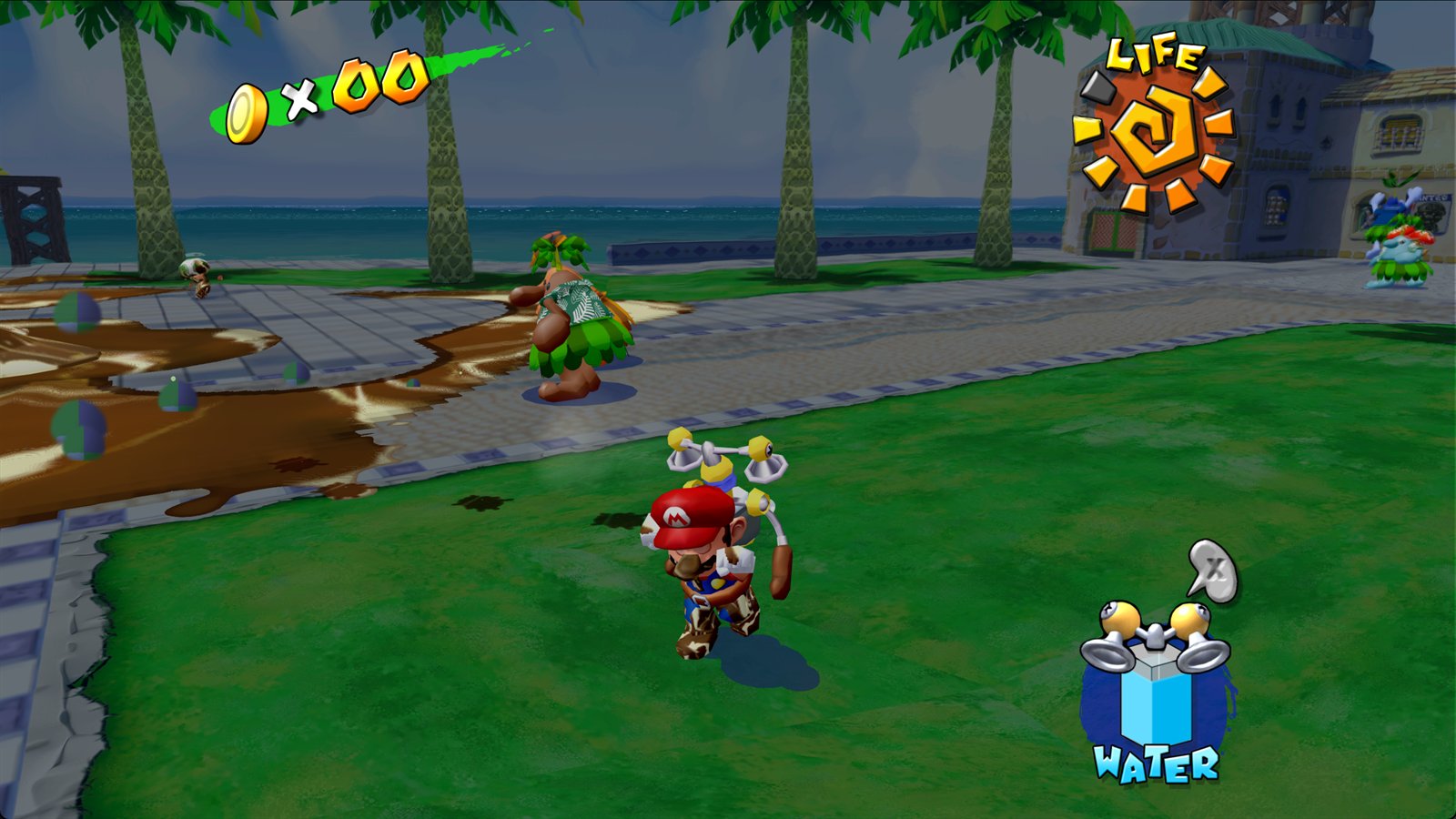

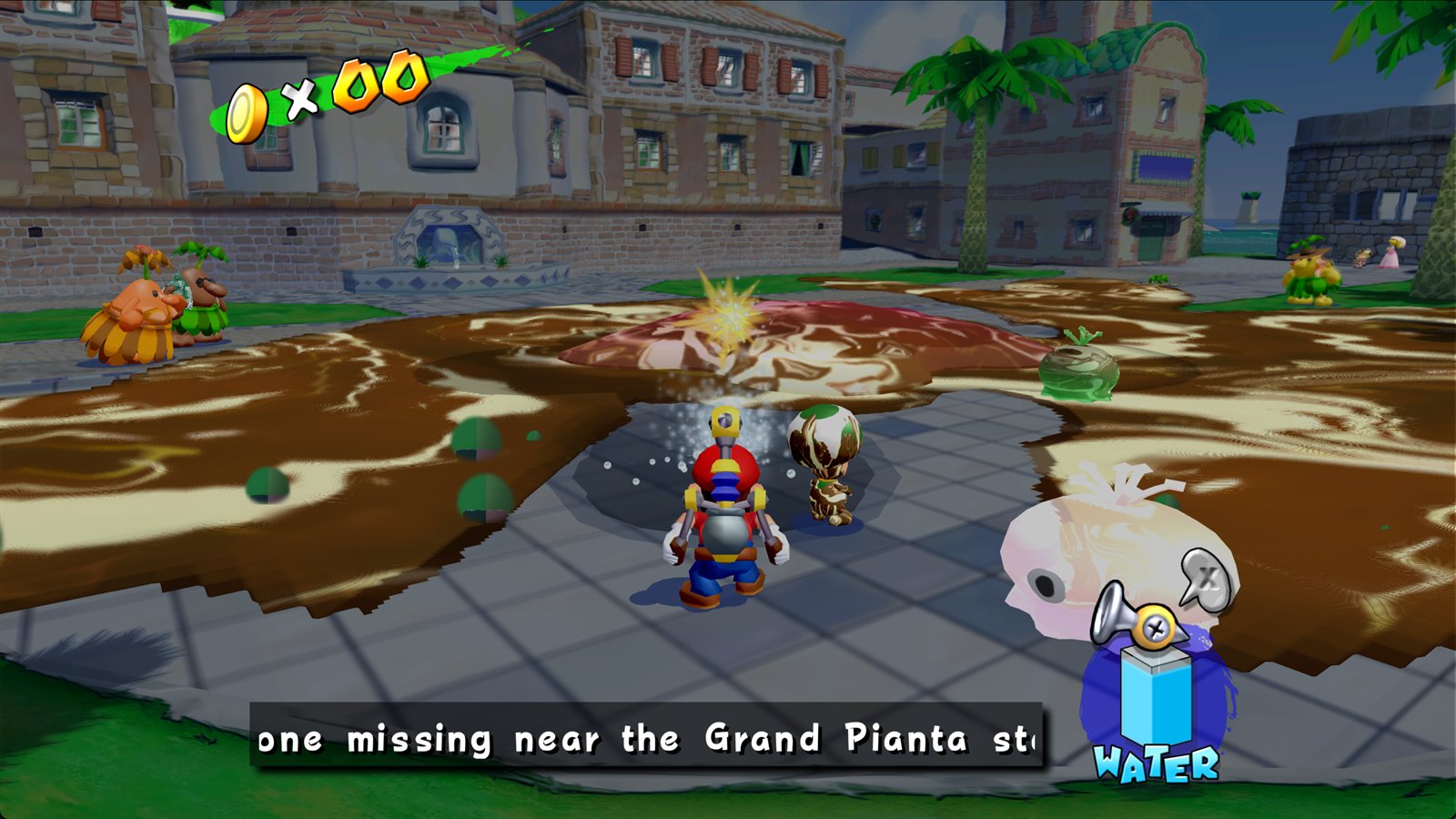

Spraying goop with FLUDD in Delfino Plaza

GameCube vs PC port

	GameCube	PC port
Resolution	640 x 528	up to 5120 x 4224 (8x)
Frame rate in gameplay	30 fps	30 or 60 fps
Aspect ratio	4:3	4:3 to 32:9
Anti-aliasing	none	MSAA 2x/4x/8x, FXAA
Texture filtering	bilinear	up to 16x anisotropic
Textures	original	original or the UHD pack
Cutscenes	640 x 448	original or 3x AI-enhanced (1920 x 960)
Display modes	TV	windowed, borderless, exclusive fullscreen
Camera	C-stick	inverted axes, free camera, speed, mouse look
Controls	GameCube controller	keyboard (rebindable), any SDL controller
Multiplayer	single player	online co-op: see up to 7 friends in your world

Hotkeys

Key	Action
`F11` or `Alt`+`Enter`	toggle fullscreen
`F10`	release or recapture the mouse (mouse look)
`	performance overlay
`F7` (overlay open)	game speed x1 / x2 / x4 / x10
`Esc`	quit

Default keyboard controls: move with WASD or the arrow keys, A is Space, B is Shift, X is V, Y is F, Z is Z, L/R are Q/E, Start is Enter, and the C-stick is I/J/K/L. All of them can be changed on the Controls page.

Getting started

Download the latest release.
- Windows: SMS-PC-Port-*-windows-x64.zip. Unzip it anywhere and run sms.exe.
- Linux: SMS-PC-Port-*-linux-x86_64.AppImage. Make it executable (chmod +x) and run it.
On the launcher's Install page, select your disc image and press Install.
Optionally install the HD texture pack on the Graphics page, and choose your settings.
Press Play.

Requirements: Windows 10 or 11 (64-bit), or 64-bit Linux, and a GPU with OpenGL 3.3. Higher internal resolutions and MSAA need a more capable GPU. An RTX 4070 Ti holds 60 fps at 5x with 4x MSAA.

Saves go to %APPDATA%\sms-port\card-a on Windows and ~/.local/share/sms-port/card-a on Linux. The Linux AppImage keeps its settings, installed disc image and mods in ~/.local/share/sms-port.

Credits

The port and the decompilation it builds on: chasem-dev/sms-pc-port and chasem-dev/sms-english, and everyone who contributed to them.
Super Mario Sunshine UHD Texture Pack by qashto and razius.
Dear ImGui (MIT) draws the launcher.

_{Super Mario Sunshine is © Nintendo. This project is not affiliated with or endorsed by Nintendo, contains no game data, and is meant to be played with a copy of the game you own.}

Building from source

Decompilation progress

GMSE01 progress: fuzzy similarity, byte-perfect code, and source-linked code

This card shows the GMSE01 decompilation snapshot recorded by the source revision pinned in this port. Fuzzy similarity measures approximate code similarity; the other two tracks show byte-perfect code and code linked from matching source.

Supported systems

System	Word size	Status	Output
Linux (x86)	32-bit (default)	plays	`build/linux-32/sms`
Linux (x86-64)	64-bit (`SMS_ARCH=64`)	plays; still being tested stage by stage (docs/64-BIT.md)	`build/linux-64/sms`
macOS (Intel, or Apple Silicon under Rosetta 2)	64-bit	plays	`build/macos-64/sms`
Windows (MSYS2 MINGW64)	64-bit	plays	`build/windows-64/sms.exe`

The game code keeps pointers in 4-byte fields, so it was written for a 32-bit machine. The 64-bit builds keep every address the game sees below 4 GiB; see docs/64-BIT.md.

Quick start

Get the source, including the decompilation submodule:

git clone --recursive https://github.com/TekRantGaming/sms-pc-port.git
cd sms-pc-port

Install the prerequisites for your system: Linux, macOS, Windows.
Put your disc image in rom/: one .iso, .gcm or Dolphin .ciso of GMSE01 Rev 0.
Build and play:
```
./build.sh
./run.sh
```
On Windows, run these in the MSYS2 MINGW64 shell, or run .\build.cmd and .\run.cmd from PowerShell.

The first build compiles about 600 game files and takes a while; later builds only rebuild what changed. Because the image is in rom/, ./build.sh also makes a standalone copy with the game's files inside (sms-standalone, or SMS.app on macOS) that runs without the image. See BUILD.md.

You can also keep the image elsewhere and pass it: ./run.sh "/path/to/Super Mario Sunshine (US).iso".

Build and run

The same two scripts work on every system:

Command	What it does
`./build.sh [IMAGE]`	builds `build/<os>-<arch>/sms`; with an image (argument, `SMS_DISC_IMAGE`, or the one in `rom/`) also the standalone copy
`./run.sh [IMAGE] [--headless]`	runs that build: with the image you pass, else the standalone copy, else the image in `rom/`
`./clean.sh [--all] [--dry-run]`	deletes the build output (every `build/<os>-<arch>/`); never deletes your disc image, and keeps the downloaded SDL2; `--all` deletes all of `build/`
`SMS_ARCH=64 ./build.sh`	chooses the word size (Linux: `32` default or `64`; macOS: `64` only; Windows: `64` default (`32` legacy with MINGW32))
`JOBS=2 ./build.sh`	limits parallel compiler jobs (default: all cores)

./build.sh --help, ./run.sh --help and ./clean.sh --help print the details. When both a 32-bit and a 64-bit build exist, ./run.sh runs the 32-bit one unless SMS_ARCH=64 is set.

Settings reference: every option in settings.txt and its environment variable

Options

Options can be kept in settings.txt (resolution = 2, texture_packs = on, ...), or set as environment variables before the command, for example SMS_SKIP_MOVIES=1 ./run.sh; an environment variable wins over the file:

Option	Effect
`SMS_SKIP_MOVIES=1`	skip the intro and opening movies
`SMS_AUDIO=0`	no sound
`SMS_SAVE_DIR=dir`	memory card folder
`SMS_BINDINGS=file`	key bindings file (default `bindings.txt` in this folder)
`SMS_DISC_IMAGE=file`	disc image to use when none is passed
`--headless` (after the image) or `SMS_HEADLESS=1`	no window, for testing (Linux only)
`SMS_OVERLAY=1`	open the debug overlay at start
`SMS_GX_SCALE=n`	render at n times the GameCube's resolution
`SMS_WIDESCREEN=16:9`	widescreen (also `21:9`, `16:10`): a wider view, with the HUD and menus kept 4:3 in the middle
`SMS_FRAME_RATE=60`	gameplay at 60 frames per second (the game's own timing, not sped up); logos, menus and movies stay at 30
`SMS_WIDESCREEN_HUD=edges`	with widescreen, move the gameplay HUD's counters to the left edge and the water gauge to the right one

Launcher and PC options

Before the game starts, a launcher window offers every option below (and key rebinding) in Install, Display, Graphics, Camera, Gameplay, Audio and Controls pages, then writes them to settings.txt and bindings.txt when you press Play. It works with the mouse, the keyboard or a controller. Its Install page takes your disc image (Browse, or drop the file on the window), checks that it is GMSE01 revision 0, and copies it into rom/ beside settings.txt (or uses it where it is), recording it as disc_image; started without a disc argument, the game also finds the one image in that rom/ folder by itself. launcher = off in settings.txt (or --no-launcher, or SMS_LAUNCHER=0) starts the game directly; hold Shift while starting, or pass --launcher, to show it anyway. It runs as a separate process so its window and GPU driver leave the game's low address space alone.

`settings.txt`	Variable	Effect
`window_mode = borderless`	`SMS_WINDOW_MODE`	`windowed`, `borderless` (fullscreen at desktop resolution) or `fullscreen` (exclusive); F11 or Alt+Enter toggles while playing
`display = 1`	`SMS_DISPLAY`	the monitor to open on (0 is the primary one)
`fullscreen_mode = 2560x1440@144`	`SMS_FULLSCREEN_MODE`	the display mode for exclusive fullscreen (`desktop` by default)
`vsync = adaptive`	`SMS_VSYNC`	`on`, `off` or `adaptive` (tears only when a frame is late)
`msaa = 4`	`SMS_MSAA`	multisample anti-aliasing: 2, 4 or 8 samples
`fxaa = on`	`SMS_FXAA`	FXAA post-process anti-aliasing
`anisotropic = 16`	`SMS_ANISO`	anisotropic texture filtering
`sharpen = 30`	`SMS_SHARPEN`	contrast-adaptive sharpening, 0 to 100
`brightness = 1.2`	`SMS_GAMMA`	brightness curve (1.0 is the original)
`aspect = stretch`	`SMS_ASPECT`	`keep` (letterboxed), `stretch` or `integer` (whole multiples of 640x528)
`present_filter = sharp`	`SMS_PRESENT_FILTER`	`bilinear` (area-averaged when the internal resolution exceeds the window, so it supersamples), `sharp` or `nearest`
`volume = 70`	`SMS_VOLUME`	master volume, 0 to 100
`camera_invert_x = on`	`SMS_CAMERA_INVERT_X`	invert the camera's horizontal control (C-stick, right stick, camera keys and mouse)
`camera_invert_y = on`	`SMS_CAMERA_INVERT_Y`	invert the camera's vertical control
`free_camera = on`	`SMS_FREE_CAMERA`	the normal camera stays where you point it instead of swinging back behind Mario; L recentres it
`camera_speed = 150`	`SMS_CAMERA_SPEED`	manual camera rotation speed in percent (100 is the original)
`mouse_camera = on`	`SMS_MOUSE_CAMERA`	mouse look: the window captures the mouse while focused; F10 releases it, a click takes it back
`mouse_sensitivity = 150`	`SMS_MOUSE_SENSITIVITY`	mouse look speed in percent
`net_mode = host`	`SMS_NET_MODE`	online co-op: `off`, `host` or `join`
`net_address = 192.168.1.20`	`SMS_NET_ADDRESS`	the host to join
`net_port = 27016`	`SMS_NET_PORT`	the UDP port (the same for everyone)
`net_name = Luigi`	`SMS_NET_NAME`	your name over your Mario

Releases

packaging/package.sh turns a build into a release package without game data: a zip of sms.exe and its DLLs on Windows (MSYS2 MINGW64), and a 64-bit AppImage on Linux (after SMS_ARCH=64 ./build.sh), which keeps its settings, installed disc image and mods in ~/.local/share/sms-port. The workflow in .github/workflows/release.yml builds both on every push and publishes them as a GitHub release when a v* tag is pushed.

Optional mods, such as HD texture packs, go in mods/; python3 tools/mods/get.py textures downloads and installs the UHD texture pack there.

Saves go to a memory card in slot A, kept as files in ~/.local/share/sms-port/card-a on Linux and macOS ($XDG_DATA_HOME/sms-port/card-a if that is set) and in %APPDATA%\sms-port\card-a on Windows. Every other switch (debugging, tracing, graphics) is listed in docs/DEVELOPMENT.md.

Frame rate, the performance overlay and default controls
