SuperMetroidSNESRecomp

SuperMetroidSNESRecomp

LLE-first recompilation of Super Metroid (SNES) into native C, using the snesrecomp framework. This repo is the per-game side: the single-fiber runtime, the per-game .cfg, the build glue, and optional HLE optimizations. The recompiled C output (src/gen/, ~93 MB) is generated locally and is not committed.

This is game #4 on snesrecomp, after Mega Man X, Super Mario World, and The Legend of Zelda: A Link to the Past.

What "static recompilation" means here

The ROM and interpreter are the architectural ground truth. Proven hot 65816 functions may be statically translated to C, while every absent or rejected exact M/X variant executes the original ROM through LLE. HLE is an optional optimization over that model. The rest of the SNES is not recompiled — it's hardware: PPU rendering, the APU/SPC700 audio coprocessor, DMA and HDMA channels, hardware register I/O, and bank-mapping all run through the embedded SNES emulation in snesrecomp/runner/src/snes/. Recompile the CPU, emulate the silicon.

The default LLE scheduler executes the real WaitForNMI loop and resumes at its architectural continuation. Optional HLE mode replaces that wait with a host-fiber yield for performance.

The ROM is never redistributed — you supply your own legally-dumped copy.

Current status

The default LLE-first build boots, renders, plays audio, completes the attract demo, starts a new game, traverses doors, pauses, and saves at Samus's ship. It remains a work in progress and needs broader end-to-end regression testing.

Screenshots

Custom widescreen at the landing site, with energy and the minimap anchored to the outer edges:

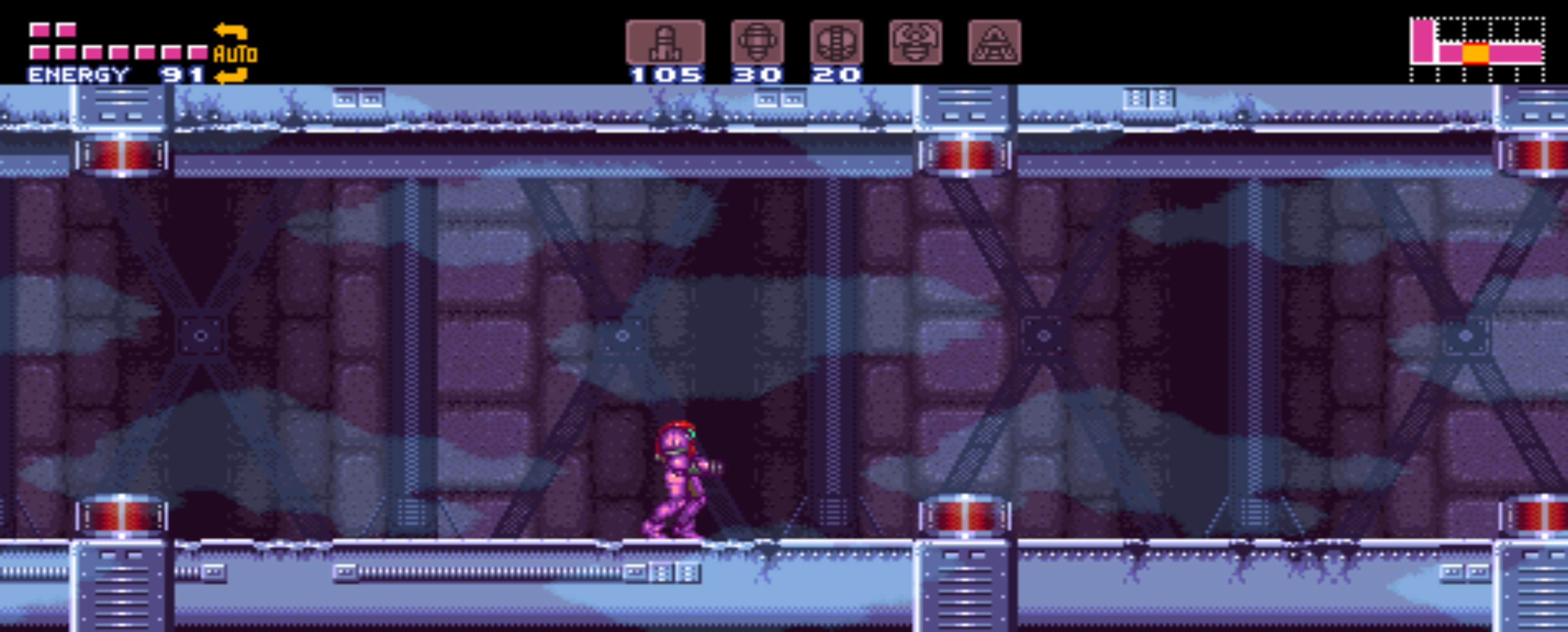

Tourian gameplay with energy and reserves on the left, weapons centered, and the minimap on the right:

Screenshots supplied by the project owner from the custom-renderer build.

Windows and Linux releases

Download the Windows x64 ZIP or Linux x86_64 AppImage from this repository's Releases page. Extract the entire Windows ZIP before launching the executable; its DLLs and assets/ directory are required. On Linux, make the AppImage executable and launch it. Supply your own unmodified Super Metroid (Japan, USA) ROM; no ROM or saved progress is included in either package.

Open Mods in the launcher to enable Widescreen (Fit, 16:9, 21:9 or 32:9) and choose edge-anchored or centered HUD placement. Presentation FPS is a separate mod with Auto and fixed frame-rate targets. Both are off by default; turning both off uses stock rendering. Game logic retains its native timing. These features are experimental: full-game visual fidelity is not certified, and achievable FPS depends on hardware and the scene.

Settings and saves live beside the executable/AppImage. Keep that directory writable, and preserve your settings and saves/ when updating. The detailed implementation and validation record is in docs/custom-renderer.md.

Building from source

Prerequisites: a snesrecomp checkout at ./snesrecomp (junction/symlink to the sibling repo, pinned in snesrecomp.pin), a verified Super Metroid ROM at the repo root, SDL3 + OpenGL, and the mingw64 toolchain (cmake, gcc, ninja) on PATH. Regeneration also requires rustup; it builds and requires the fast native analyzer by default. Set SNESRECOMP_ANALYSIS_BACKEND=python only to use the slower reference path.

# 1. (once) clone the snesrev/sm decomp as the symbol/oracle reference
#    (commit pinned in refs/snesrev-sm.pin), then ingest its symbols:
git clone --depth 1 https://github.com/snesrev/sm.git refs/snesrev-sm
python tools/ingest_sm_decomp.py   # funcs -> recomp/*.cfg; tables -> recomp/sm_decomp_symbols.json

# 2. deterministic profile-scoped regeneration (no guest widescreen hooks). Strict mode
#    independently regenerates and requires byte-identical output.
./tools/regen.sh --strict-idempotent

# 3. configure + build
cmake -G Ninja -B build -S . -DCMAKE_BUILD_TYPE=Debug -DCMAKE_C_COMPILER=gcc
cmake --build build -j 8

# 4. run (supply your own ROM)
./build/SuperMetroidSNESRecomp.exe "Super Metroid (Japan, USA) (En,Ja).sfc"

Layout

Path	What
src/	hand-written runtime: sm_rtl.c (single-fiber frame driver), sm_cpu_infra.c, sm_spc_player.c, gen_stubs.c (HLE bodies), main.c, post_mortem.c
src/gen/	generated recompiled C (not committed)
recomp/	per-bank .cfg (function boundaries, HLE/dispatch directives) + generated funcs.h
snesrecomp/	junction to the shared framework repo (tracked there; see snesrecomp.pin)
tools/	per-game helpers

---

_{R.A.I.D. — Retro AI Development · a Discord for AI-assisted retro reverse-engineering, decomp & recomp}

License

PolyForm Noncommercial 1.0.0. See LICENSE. Code in this repo is original; vendored dependencies under third_party/ retain their own licenses.

The game ROM and any data extracted from it are not in this repo and are not licensed for redistribution.
